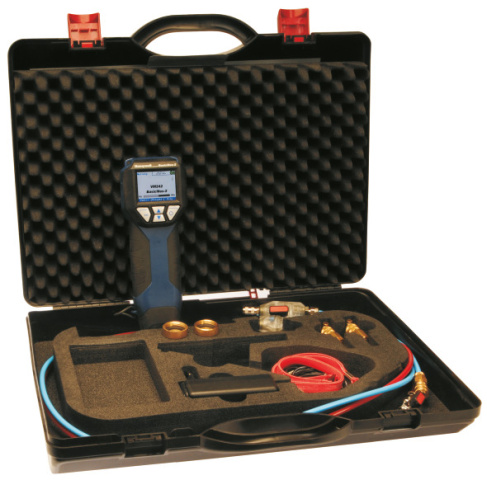

Resideo VM242A0101 Measuring computer BASICMES-2 NEW

"Fig. similar. , errors in texts and images excepted."

Resideo VM242A0101 Measuring computer BASICMES-2 NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4029289065049
Heiz24 article number: PSVM242A0101
TARIC: 90262020
Country of origin: DE
Category: Accessories for pipe fittings

€ 7.028,97

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 3 weeks (DE - foreign countries differ)

Pcs.

Description
Reviews

Resideo BasicMes-2 measuring device
The BasicMes-2 is a measuring device for flow measurements in temperature-transmitting heating and cooling systems.
The BasicMes-2 measures the differential pressure across an opening, for example a valve seat. Together with the kv value of the opening, the flow rate is calculated using the kv formula. The kv value of all Resideo equalising valves and some common valves from other manufacturers are stored in an internal database
. It is also possible to enter the kv value manually.
In addition to differential pressure and flow measurement, the BasicMes-2 has the following functions:
- Two temperature sensor inputs for simultaneous (with two sensors) or consecutive (with one sensor) temperature measurements
- Data logging function with programmable interval and period
- Leak test with programmable test pressure and period
- Memory for saving the measured values
- PC connection option, to transfer the measured data from the device to a PC using PC application software
- Printout function in combination with an optional pocket printer (accessory)

Technical specifications
Basic specifications of the device
Medium: Water or glycol-water mixture, glycol content max. 50%. Quality according to VDI 2035
Medium temperature -20 to 120GradC (-4 to 248GradF)
Ambient temperature 5 to 40GradC (41 to 104GradF)
Differential pressure max. +/- 17bar (247psi)
Weight 2.5kg including accessories and transport case
Dimensions 470 x 370 x 110mm (length x width x height)

Units and display
Pressure units mbar, bar, hPa, kPa, mH2O, in H2O, psi
Temperature units degC, DegreesF

External temperature measurement
Measuring range -20 to 300GradC (-4 to 572GradF)

Power
Power supply, four rechargeable AA batteries, mains power charging adapter supplied with the device

Languages
Standard languages:
English, Dutch, French, German, Italian and Spanish.
A flash upgrade can be downloaded for other countries.

Scope of delivery
- VM242A BasicMes-2 measuring device with four rechargeable batteries and carrying strap
- Hose set with bridging set and SafeConTM quick connectors
- Battery charger
- USB cable
- Two adapters from SafeConTM to Rectus 21 (for connecting the BasicMes-2 to Resideo valves with Rectus 21 pressure measurement port)
- Two adapters to Rectus 21 to 3/4" female thread
- Case with foam insert
- User software on CD-ROM
- Instruction manual with quick reference guide
Type of accessory: Measuring device
Product description: BasicMes-2 complete with case and hose connection set
Note: Identical to former Honeywell article
Make: Resideo
Type: Braukmann

PDF

rddb14347.pdf

rddb14347.pdf

rdma12960.pdf

rdma12960.pdf

Item information	Value
Type:	Braukmann VM242A0101
Make:	Resideo
Note:	Baugleich mit ehem. Honeywell
Shipping weight:	3,42 kg
Item weight:	2,85 kg
Dimensions ( Length × Width × Height ):	47,00 × 11,00 × 37,00 cm
LaNr.:	VM242A0101
