"Fig. similar. , errors in texts and images excepted."

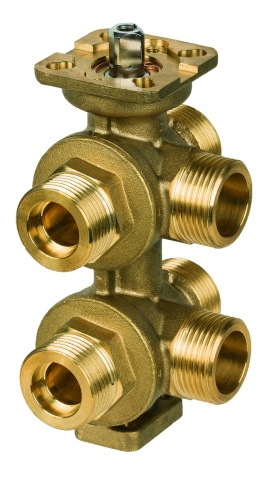

Resideo VBG6-15 6-way valve NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4046911078284
Heiz24 article number: PSVBG6-15
TARIC: 84818051
Country of origin: IT
Category: 6-way valve for 4-pipe system

€ 132,03

incl. 19% VAT , plus

Choose tax zone / country of delivery

10 Pcs. In stock
Estimated delivery time (may vary): 1 - 3 Workdays (DE - foreign countries differ)

Pcs.

Description
Reviews

Type: VBG6-15
VBG6
Honeywell 6-way valve for 4-pipe
systems. Connection of
2-pipe heat exchanger terminal units to
4-pipe systems using a
6-way valve with external thread that can switch
between heating and cooling
. Pipe connections with
external thread save time during
installation and maintenance. Thanks to the
innovative design of the valves,
the occurrence of cross-flows
is reliably prevented. The valves
allow flexible adjustment of the
flow rate using a
flow rate limiter kit
(limiter discs for adjusting the
flow rate).
They are operated either via an
on/off actuator, which offers
simple switching functions,
or via a continuously regulating
actuator, which allows you to switch the valve to
centre position in order to close
both the heating and
cooling circuits. For
remote system monitoring and for the
system check,
position feedback is used via the continuously
regulating actuator.
For particularly energy-efficient
use, the valve is connected to the pressure-independent
valve combination FCU via a
connection piece, which ensures dynamic hydraulic
balancing for
.

- Operating pressure: 16 bar

- Operating temperature: +2 to 10 degrees C

- Housing: brass

- Medium: water or
water/glycol mixture in accordance with VDI 2035

- KVS range: 0.25 / 0.40 / 0.63 / 1.0 / 1.25 m3/h

- Nominal size: DN15
-
Connection: G 3/4 AG

PDF

PDF Manual Info

PDF Manual Info

PDF Manual Info

Item information	Value
Type:	Honeywell Home VBG6-15
Nominal width:	DN 15
Medium:	Wasser, mit max. 50 % Glykol
Connections:	Außengewinde flachdichtend
Make:	Resideo
Enclosure material:	Messing
Connection thread:	G 3/4
Nominal pressure:	PN 16
Max. Medium temperature:	110 GradC
Min. medium temperature:	2 GradC
Control characteristics:	linear
KVS area:	0,25 / 0,40 / 0,63 / 1,0 /
Kvs value 1:	1,25
Kvs value 2:	1,25
Position:	200 kPa
Shipping weight:	1,30 kg
Item weight:	1,08 kg
Dimensions ( Length × Width × Height ):	14,00 × 9,50 × 10,00 cm
LaNr.:	VBG6-15
