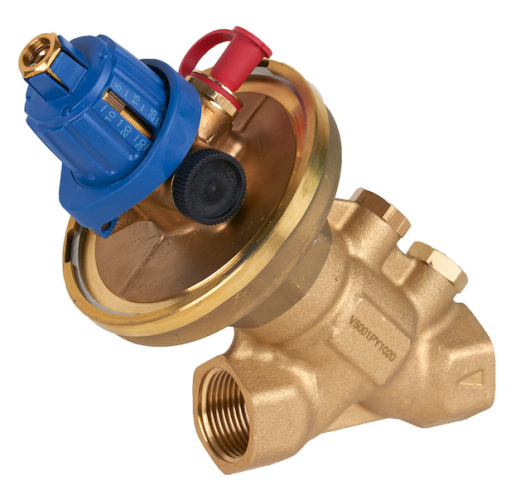

Resideo V5001PY1050 Differential pressure control valve combi car NEW

"Fig. similar. , errors in texts and images excepted."

Resideo V5001PY1050 Differential pressure control valve combi car NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4029289065803
Heiz24 article number: PSV5001PY1050
TARIC: 84818087
Country of origin: CZ
Category: Pipeline fittings

€ 667,97

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 2 - 3 weeks (DE - foreign countries differ)

Pcs.

Description
Reviews

Resideo differential pressure regulator Kombi-Auto V5001PY1
Automatic differential pressure regulator PN16 for constant control of a set differential pressure as a proportional regulator without auxiliary energy for use in 2-pipe pump hot water systems. The desired differential pressure is infinitely adjustable without tools (factory preset to 50 mbar). Adjustment can be blocked and sealed and can be read from the outside. Integrated, concealed shut-off. All functional elements accessible from one side. Supplied including 0.8 m impulse line with the required clamping rings, pressure screws and insulating shell.
Valve housing made of dezincification-resistant brass. Wide range of measuring options via SafeConTM measuring connections (accessories). Can be drained using a drain valve (VA3401A008).
Medium: water, with max. 50 % glycol in accordance with VDI 2035
Housing material: brass, dezincification-resistant
Kvs value: 30
Flow rate: 450 - 17000 l/h
Differential pressure: 5 - 35 kPa
Medium temperature: -20 degrees C - 130 degrees C
Nominal pressure: PN 16
Version: with internal thread
Nominal size: DN 50
Note: Identical in construction to the previous model. Honeywell article
Make: Resideo
Type: Braukmann

PDF

rddb14518.pdf

rddb14518.pdf

rdma14517.pdf

rdma14517.pdf

Item information	Value
Type:	Braukmann V5001PY1050
Nominal width:	50 DN
Medium:	Wasser oder
Make:	Resideo
Enclosure material:	Messing
Nominal inside diameter:	DN 50
Kvs value:	30
Note:	Baugleich mit ehem. Honeywell
Pressure stage Article:	PN 16
Operating pressure:	16 bar
Operating temperature:	- 20GradC...+
Version PY:	mit Innengewinde nach DIN
Shipping weight:	5,59 kg
Item weight:	4,66 kg
Dimensions ( Length × Width × Height ):	27,60 × 15,60 × 26,40 cm
LaNr.:	V5001PY1050
