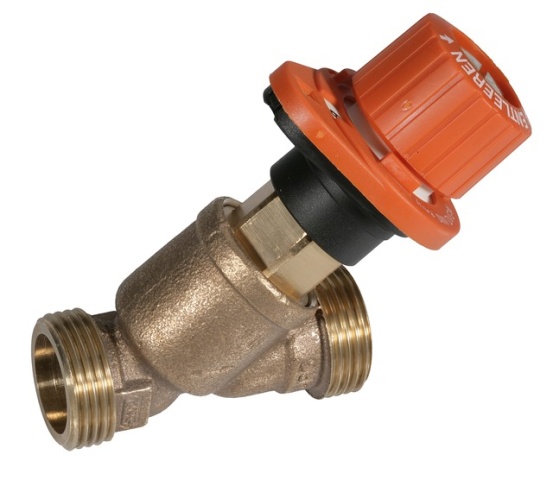

Resideo V1810X0025 Throttle valve Alwa-Kombi-4 NEW

"Fig. similar. , errors in texts and images excepted."

Resideo V1810X0025 Throttle valve Alwa-Kombi-4 NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4029289019585
Heiz24 article number: PSV1810X0025
TARIC: 84818019
Country of origin: CZ
Category: Control valves

€ 122,33

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 11 - 13 Workdays (DE - foreign countries differ)

Pcs.

Description
Reviews

Resideo throttle valve Kombi-4
The Kombi-4 is used as a throttle valve for hydronic balancing in hot water circulation systems. To achieve hydronic balancing, the flow in the circulation pipe is throttled by manually presetting the valve. Alternatively, the valve can be fitted with a thermal control attachment that enables the water temperature in the circulation pipe to be set to the exact degree. The thermal control attachment can be retrofitted without interrupting the supply. When using the 50-60 °C thermal control top unit, thermal disinfection in accordance with DVGW worksheet W551 is supported. During thermal disinfection, a hydraulic balance is also created to ensure the disinfection of all lines. For drinking water circulation systems.
Medium: drinking water
Body material: brass, dezincification-resistant
Kvs value: 6.8
Medium temperature: 2 degreesC - 130 degreesC
Nominal pressure: PN 16
Design: with external thread, flat-sealing
Nominal size: DN 25
Note: Identical in construction to former Honeywell article
Make: Resideo
Type: Braukmann

PDF

rddb14503.pdf

rddb14503.pdf

rdma14502.pdf

rdma14502.pdf

Item information	Value
Type:	Braukmann V1810X0025
Nominal width:	DN 25
Medium:	Wasser 130Grad C
Make:	Resideo
Enclosure material:	Messing
Nominal inside diameter:	DN 25
Kvs value:	6,8
Note:	Baugleich mit ehem. Honeywell
Pressure stage Article:	PN 16
Min. medium temperature (continuous operation):	2
Operating pressure:	16 bar
Execution X:	beiderseits Aussengewinde
Shipping weight:	0,77 kg
Item weight:	0,64 kg
Dimensions ( Length × Width × Height ):	15,80 × 5,40 × 10,80 cm
LaNr.:	V1810X0025
