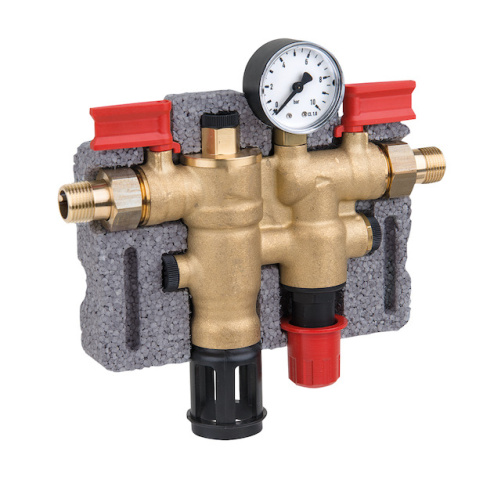

Resideo NK300S-1/2A refill combination NEW

"Fig. similar. , errors in texts and images excepted."

Resideo NK300S-1/2A refill combination NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4019837149772
Heiz24 article number: PSNK300S-1/2A
TARIC: 84813091
Country of origin: DE
Category: Filling valves and refill combinations

€ 177,12

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

1 Pcs. In stock
Estimated delivery time (may vary): 1 - 3 Workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Description
Reviews

Resideo refill combination NK300S
Housing made of dezincification-resistant brass. Drain connection, cartridge insert, valve insert and spring cap made of high-quality plastic. The filling combination is used for the automatic filling and refilling of closed heating systems in accordance with DIN EN 12828:2003. The refilling combination combines a system separator (type BA), pressure reducer and two shut-off ball valves in one device. All components for the standard-compliant filling of a heating system are included.
Medium: Drinking water
Installation position: Horizontal with drain connection facing downwards
Design: With threaded nozzles 1/2"
Back pressure: 1.5 bar - 4 bar
Connections: Male thread
Max. Working pressure: 10 bar
Shut-off: Inlet/outlet
System separator category: BA
Max. Inlet temperature: 65 °C
Nominal size: 1/2"
Note: Identical to former Honeywell article
Make: Resideo
Type: Braukmann

PDF

Item information	Value
Type:	Braukmann NK300S-1/2A
Height:	219 mm
Make:	Resideo
Nominal inside diameter:	DN15
Adjustment range:	1,5 - 4 bar
Wide:	220 mm
Depth:	49 mm
Note:	Baugleich mit ehem. Honeywell
Operating pressure:	max. 10 bar
Operating temperature:	max. 65 GradC
Version A:	Mit Gewindetüllen 1/2"
Mounting position:	waagrecht mit
Minimum pressure:	2 bar
Shipping weight:	1,80 kg
Item weight:	1,50 kg
Dimensions ( Length × Width × Height ):	22,00 × 11,50 × 20,50 cm
LaNr.:	NK300S-1/2A
