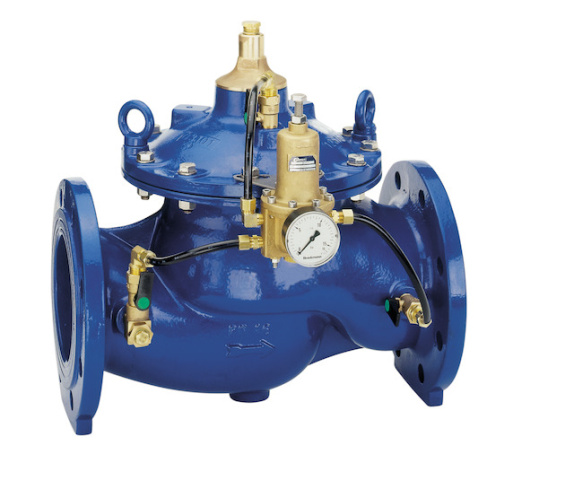

Resideo DR300-80B pressure regulator with flange connection NEW

"Fig. similar. , errors in texts and images excepted."

Resideo DR300-80B pressure regulator with flange connection NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4019837065294
Heiz24 article number: PSDR300-80B
TARIC: 84811019
Country of origin: IL
Category: Pilot control

€ 6.035,09

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 3 months (DE - foreign countries differ)

Pcs.

Description
Reviews

Resideo pressure regulator DR300
with auxiliary control, intrinsically medium-controlled. For constant pressure reduction of variable inlet pressures. Fluctuating flow rates and inlet pressures have no influence on the set holding pressure. Compact device, particularly suitable for tight installation conditions, e.g. in shafts. No need to lay a pulse line. Housing, cover and diaphragm disc made of spheroidal graphite cast iron (ISO 1083). Valve seat, compression spring and control rod made of stainless steel. Diaphragm (fabric-reinforced) made of NBR. Seals made of NBR and EPDM. Red brass regulating cone. Control lines made of high-quality plastic. Housing, cover and diaphragm disc powder-coated inside and outside. Brass pilot valve, with pressure gauge. Integrated bleed valve. Valve requiring maintenance in accordance with DIN EN 806-5.
Medium: drinking water
Design: with flanges PN 25, ISO 7005-2, DIN EN 1092-2
Nominal size: DN 80
Medium temperature: 2 degrees C - 80 degrees C
Nominal diameter: DN 80
Kvs value: 103
Nominal pressure: PN 25
Body material: spheroidal graphite iron
Connections: Flange
Reduced pressure: 3 bar - 19 bar
Note: Identical to former Honeywell article
Make: Resideo
Type: Braukmann

PDF

rdma11244.pdf

rdma11244.pdf

rddb13821.pdf

rddb13821.pdf

Item information	Value
Type:	Braukmann DR300-80B
Nominal width:	DN 80
Height:	330 mm
Medium:	Wasser bis 80 GradC
Connections:	Flansch
Make:	Resideo
Enclosure material:	Gusseisen
Nominal inside diameter:	DN 80
Note:	Baugleich mit ehem. Honeywell
Pressure stage Article:	PN 25
Version B:	Gehäuse mit Flanschen, PN
Shipping weight:	28,80 kg
Item weight:	24,00 kg
Dimensions ( Length × Width × Height ):	43,00 × 46,00 × 35,00 cm
LaNr.:	DR300-80B
