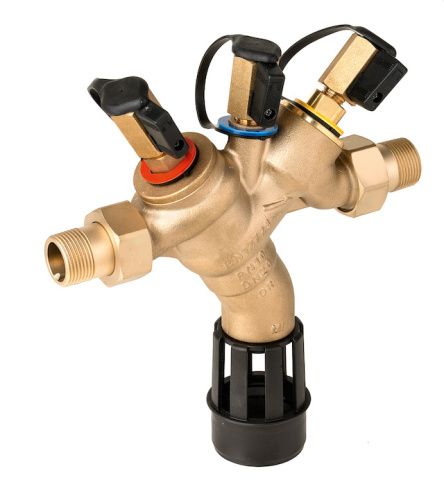

Resideo BA295S-11/4A system separator with threaded spout connection NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4019837150266
Heiz24 article number: PSBA295S-11/4A
TARIC: 84813099
Country of origin: DE
Category: System separator with threaded connection

€ 592,01

incl. 19% VAT , Free shipping to DE.

Old price: € 935,53

Choose tax zone / country of delivery

2 Pcs. In stock
Estimated delivery time (may vary): 1 - 3 Workdays (DE - foreign countries differ)

Pcs.

Resideo BA295S system separator
Type BA system separator with controllable medium pressure zone to protect the drinking water against backpressure, backsiphonage and backflow of liquids of liquid category 4 in accordance with EN1717. Version C is supplied with two additional shut-off ball valves. The fitting has an integrated dirt strainer with a mesh size of 0.2 mm. The inlet-side non-return valve and the drain valve are combined in a cartridge unit. The cartridge principle significantly simplifies maintenance, and in-service is possible without special tools. All wetted materials comply with the UBA positive list. The housing is made of dezincification-resistant brass and the design is characterised by compactness, low pressure loss and a high flow rate in accordance with EN12729. All three pressure zones are fitted with a test ball valve for the prescribed annual test. Fitting subject to maintenance in accordance with DIN EN 806-5.
Medium: Drinking water
Nominal size: 1 1/4 inch
Protection class: BA
Body material: Brass, dezincification-resistant
Fluid category (DIN EN 1717): 4
Max. Medium temperature: 65 degrees C
Kvs value: 8.5
Nominal pressure: PN 10
Note: Identical to former Honeywell article
Make: Resideo
Type: Braukmann

PDF

Item information	Value
Type:	Braukmann BA295S-11/4A
Height:	277 mm
Medium:	Trinkwasser
Connections:	Außengewinde konisch (NPT)
Make:	Resideo
Enclosure material:	Messing
Nominal inside diameter:	1 1/4 Zoll (32)
Protection class:	BA
Kvs value:	9
Connection size:	R 11/4 Zoll
Note:	Baugleich mit ehem. Honeywell
Pressure stage Article:	PN 10
Min. medium temperature (continuous operation):	2
Mounting position:	Waagerecht -
max. inlet pressure:	10,0 bar
Max. Temp.:	65 GradC
Shipping weight:	4,14 kg
Item weight:	3,45 kg
Dimensions ( Length × Width × Height ):	34,50 × 12,00 × 25,00 cm
LaNr.:	BA295S-11/4A
