"Fig. similar. , errors in texts and images excepted."

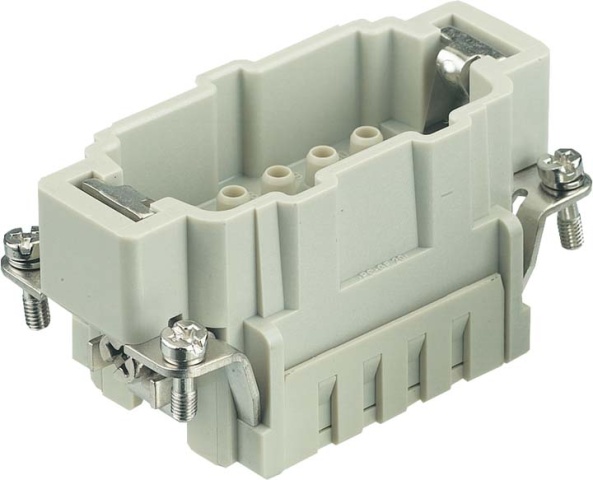

Harting crimp terminal pin insert 09330102602 NEW

Item condition: New and in original packaging

Manufacturers: Harting
Heiz24 article number: SP1088011
TARIC: 85366990
Country of origin: DE
Category: Rohre und Schutzschläuche

€ 8,73

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Please note the permissible order quantity of 1 Pcs..

Inserts, crimp connection, pin, polycarbonate, RAL 7032 (pebble grey), rated current: 16 A, size: 10 B, contacts: 10, conductor cross-section: 0.14...4 mm²

PDF

Produktdatenblatt

Produktdatenblatt

Produktdatenblatt

Item information	Value
Number of poles:	10
Flammability class of the insulating material according to UL 94:	V0
Operating temperature:	-40..125 °C
With protective earth:	ja
Connectable conductor cross-section finely stranded without ferrule:	0,14..4 mm²
Connectable conductor cross section stranded:	0,14..4 mm²
Rated voltage:	500 V
Rated current In:	16 A
Design of the electrical connection:	Crimpanschluss
Rated surge voltage:	6 kV
Contact design:	Stift
Contact insert without contacts:	ja
With wire protection:	nein
Pollution level:	3
Contact coating material:	sonstige
Material of the contact insert:	sonstige
Contact material:	sonstige
Material of the connector insert:	Thermoplast
Min. number of mating cycles:	500
Number of service contacts:	10
Shipping weight:	0,06 kg
Item weight:	0,05 kg
Dimensions ( Length × Width × Height ):	3,40 × 6,40 × 3,30 cm
