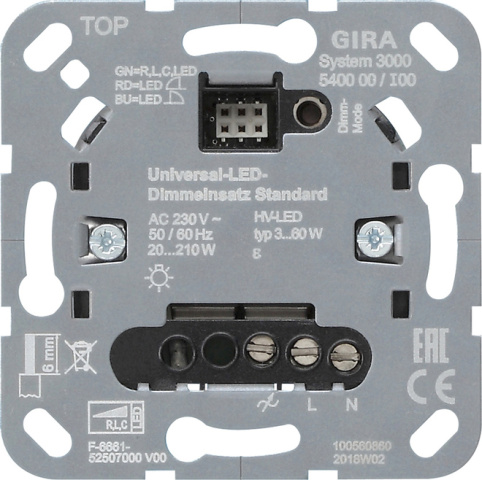

Gira Uni LED dimming insert standard 540000 NEW

Item condition: New and in original packaging

Manufacturers: Gira#
EAN: 4010337047995
Heiz24 article number: SP6408337
TARIC: 85365080
Country of origin: DE
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 84,63

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

73 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 73 Pcs. we can order for you

Pcs.

System 3000 universal LED dimmer insert Standard Features: Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps. Automatic or manual setting of the dimming principle suitable for the load (leading or trailing edge). Indication of the set operating mode by means of LED. Gentle switching on of lamps. Switch-on brightness can be stored permanently. Switch-on with last set brightness or stored switch-on brightness. Minimum brightness adjustable. Electronic short-circuit protection. Electronic overtemperature protection. Operation with and without neutral conductor connection. Touch dimmer. Combination with KNX RF operating top unit 1-gang 2-gang: Dimming actuator channel 1-gang. Sensor channel 1-gang or 2-gang. Local control of System 3000 insert possible. Radio control of other KNX devices as sensor possible. Function selection of the insert: Dimming principle adjustable, staircase function, scene function, locking function, time delays. Notes : In principle, the dimmer can be operated without connecting the neutral conductor, however, some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. When operating without a neutral conductor, the minimum load for incandescent lamps, HV halogens, Tronic transformers and wound transformers increases to 50 W. Electronic transformers and ballasts for LED lamps can be operated in the dimming mode specified by the manufacturer. If the ambient temperature is higher than 25 C, the connected load must be reduced.

PDF

Produktdatenblatt

Produktdatenblatt

Item information	Value
Surface protection:	sonstige
Colour:	sonstige
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	nein
Connection type:	Schraubklemme
Material:	sonstige
Mounting type:	Krallen-/Schraubbefestigung
Rated voltage:	230 V
Dimming phase section:	Ja
Dimming phase angle control:	Ja
Compilation:	Basiselement
Frequency:	50..60 Hz
Extension input:	nein
App control via Bluetooth:	nein
Operating mode:	Drucktaster
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Load type:	universal und LED Retrofit
Light value memory:	ja
Max. Switching capacity LED:	120 W
Rated power inductive load:	20..210 VA
Rated power capacitive load:	3..60 VA
Rated power resistive load:	20..210 W
Series dimmer:	nein
Can be used with motion detector:	nein
Can be used with radio button:	nein
Can be used with IR button:	nein
Can be used with presence detector:	nein
Usable with button:	nein
Can be used with timer/timer:	nein
Suitable for protection class (IP):	IP20
Shipping weight:	0,11 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	7,90 × 8,80 × 5,80 cm
