"Fig. similar. , errors in texts and images excepted."

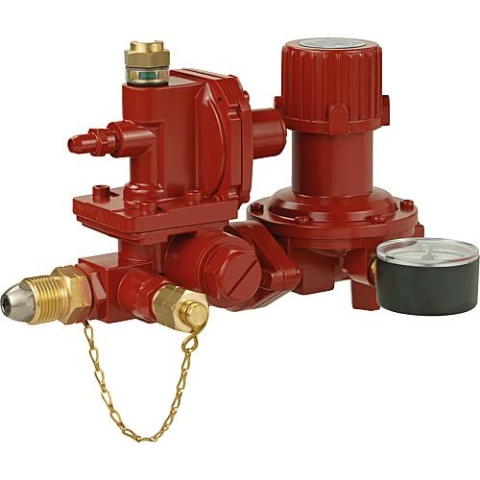

GOK pre-stage controller D 68 RVS 15 24kg/h 4bar with emergency supply connection 01 376 01 NEW

Item condition: New and in original packaging

Manufacturers: GOK#
EAN: 4045659028087
Heiz24 article number: WS5800118
TARIC: 84818099
Country of origin: DE
Category: Gas fittings

€ 388,00

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 4 weeks (DE - foreign countries differ)

Pcs.

- For direct connection to gas cylinders
- Inlet: POL connection
- Outlet: cutting ring connection RVS 15 mm with safety shut-off valve OPSO (SAV) and safety relief valve PRV
- With height-adjustable support device, also for inclined position
- With pressure gauge and locking device
- With insect protection device
- With test connection
- With emergency supply connection
DN 10 (3/8") LH-KN with non-return valve
- Inlet pressure: Outlet pressure
+ minimum 1.5 bar to maximum 16.0 bar
- Outlet pressure: 0.7 - 4.0 bar (adjustable)
- Output: 24 kg/h
- Pressure regulator fulfils the requirements regarding ice/hydrate formation in accordance with 4811 (E-marking)
Safety
(safety valve setting values for tanks mostly 15.6 bar)
Gas meter for propane systems:
The supplier delivers the propane gas in the liquid phase and bills in kg for cylinders or in litres for tank systems. However, a gas meter records the gas phase and displays m3. In the case of several consumption
units with one storage tank, all units must be equipped with one meter due to legal requirements, so that billing is based on the ratio of m3 consumed.
For control purposes or in special cases, this ratio can be determined as follows (values depend on temperature and pressure):
Density of the gas phase in kg/m3 : density of the liquid phase kg/l Example: 1.97 kg/m3 : 0.51 kg/l Result: 3.86 l/m3

PDF

58_001_18--DBL-01-de.pdf

Datenblatt

58_001_18--DBL-01-de.pdf

58_001_18--ZFT-01-de.PDF

Zertifikat

58_001_18--ZFT-01-de.PDF

Item information	Value
Brand:	GOK
EAN:	4045659028087
Manufacturer no.:	01 376 01
Shipping weight:	3,54 kg
Item weight:	3,54 kg
Dimensions ( Length × Width × Height ):	30,80 × 16,80 × 16,20 cm
LaNr.:	58 001 18
