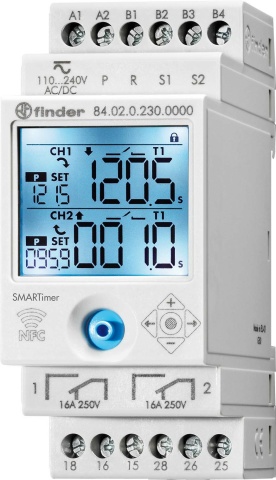

Finder multifunction time relay 110-240V AC/DC, 16A 84.02.0.230.0000 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823407241
Heiz24 article number: SP6402790
TARIC: 85364900
Country of origin: IT
Category: Industrial Technology/Automation

€ 108,71

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Multifunction time relay SMARTimer for DIN-rail mounting, DIN rail mounted, digital, 2 independent change-over contacts for 16 A, 2 independent start inputs (S1/S2), one common reset input (selectable per channel or both channels), contact material AgNi, max. inrush current: 30 A, 25 time functions are programmable: function codes: OFF, ON, AI, DI, GI, LI, PI, SW, SP, AE, BE, CE, DE,EE, FE, EEa, EEb, WD, GE, LE, PE, IT, SS, PS and SHp. Time ranges: 0.1 s to 9999 h, supply voltage 110 to 240 V AC/DC (50/60 Hz). 2 programming modes: in Smart mode with a smartphone via NFC communication or Classic mode with the joystick. Construction width 35 mm, relay protection type: IP20.

Item information	Value
Height:	88,8 mm
Rated current:	16 A
Wide:	35 mm
Depth:	60,8 mm
Voltage type for actuation:	AC/DC
Design of the electrical connection:	Schraubanschluss
Rated control supply voltage Us at AC 50 Hz:	110..240 V
Rated control supply voltage Us at AC 60 Hz:	110..240 V
Rated control supply voltage Us at DC:	110..240 V
Time range:	0,1..35996400 s
Number of outputs, delayed, changeover contact:	2
Attachable to contactor:	nein
Outputs, switchable delayed/undelayed:	ja
Remote control possible:	ja
Function response delayed:	ja
Function wiping out:	ja
Function flashing starting with pulse, fixed time:	ja
Function flashing starting with pause, fixed time:	ja
Function wiping on:	ja
Pulse shaping function:	ja
Delayed release function:	ja
Function star/delta:	nein
Function clocking starting with pulse, variable:	ja
Function clocking starting with pause, variable:	ja
Suitable for front mounting:	nein
Suitable for top-hat rail mounting:	ja
With semiconductor output:	nein
With plug-in base:	nein
Suitable as remote control:	nein
Shipping weight:	0,15 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	24,50 × 10,00 × 10,00 cm
