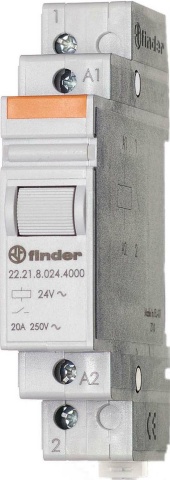

Finder installation relay 22.21.8.024.4000 NEW

"Fig. similar. , errors in texts and images excepted."

Finder installation relay 22.21.8.024.4000 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823267616
Heiz24 article number: SP0776124
TARIC: 85364900
Country of origin: IT
Category: Industrial Technology/Automation

€ 14,84

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Installation relay for 35 mm rail, 1 NO contact for 20 A / 250 V AC, contact material AgSnO², max. Switching capacities at 230 V AC: AC1-5000 VA, AC15 1000 VA, incandescent and halogen lamps 1000 W, fluorescent lamps with ECG 400 W, fluorescent lamps with CCG 360 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, LV halogen lamps or LED with ECG 200 W, LV halogen lamps or LED with CCG 400 W, coil data: 24 V AC, 3 VA, 41 Ohm width 17.5 mm, test button, relay protection class: IP 20

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC
Function:	mechanisch
Supply voltage:	24 V
Installation depth:	58,4 mm
Rated current:	20 A
Max. Incandescent lamp load:	1000 W
Max. Fluorescent lamp load:	400 VA
Max. Fluorescent lamp load (duo circuit):	400 VA
Max. Fluorescent lamp load (parallel compensated):	360 VA
Control voltage frequency 1:	50..60 Hz
Max. Switching current (cos phi:	0,6)=12 A
Control voltage 1:	24 V
Shipping weight:	0,11 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	2,50 × 6,90 × 9,50 cm
