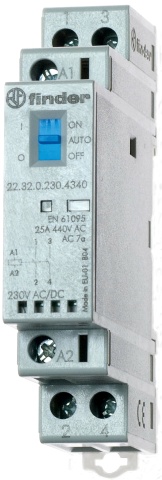

Finder installation contactor 230VAC/DC,1S+1Ö,LED 22.32.0.230.4540 NEW

"Fig. similar. , errors in texts and images excepted."

Finder installation contactor 230VAC/DC,1S+1Ö,LED 22.32.0.230.4540 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823356495
Heiz24 article number: SP0782699
TARIC: 85364900
Country of origin: IT
Category: Industrial Technology/Automation

€ 18,37

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

84 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 84 Pcs. we can order for you

Pcs.

Installation contactor for 35 mm rail, 1 NO contact and 1 NC contact for 25 A / 250 V AC, contact material AgSnO², max. Switching capacities at 230 V AC: AC1 6250 VA, AC15 1800 VA, 1-phase motor load, AC3 (230 V AC) 1 kW, rated current AC AC-7c 10 A, incandescent and halogen lamps 2000 W, compact fluorescent lamp (energy-saving lamp) 200 W, fluorescent lamp with ECG 800 W, fluorescent lamp with CCG 500 W, LED (230 V AC) 200 W, LV halogen lamps or LED with ECG 200 W, LV halogen lamps or LED with CCG 800 W. Coil: 230 V AC/DC, width 17.5 mm, with On-Auto-Off - switch, LED and mechanical switch position indicator, relay protection type: IP 20

Item information	Value
Protection class (IP):	IP20
Width in units of division:	1
Number of contacts as normally open:	1
Rated operational current:	25 A
Installation depth:	60,8 mm
Max. Incandescent lamp load:	2000 W
Max. Fluorescent lamp load:	800 VA
Max. Fluorescent lamp load (duo circuit):	800 VA
Max. Fluorescent lamp load (parallel compensated):	500 VA
Number of contacts as break contacts:	1
Additional equipment possible:	ja
Rated operating voltage:	250..440 V
Rated actuating voltage:	230 V
Utilisation category:	1
Slider for manual gearstick:	ja
Actuating voltage type:	AC/DC
Voltage type of the operating voltage:	AC
Shipping weight:	0,12 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	3,20 × 7,00 × 9,50 cm
