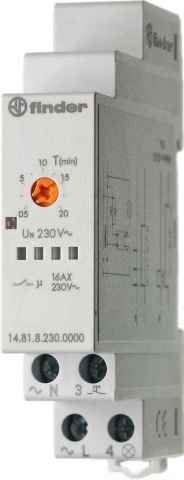

Finder Staircase control unit 1S 16A 230VAC 14.81.8.230.0000 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823325866
Heiz24 article number: SP5700162
TARIC: 85364900
Country of origin: IT
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 33,32

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

4 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 4 Pcs. we can order for you

Pcs.

Staircase light controller, for DIN rail, 17.5 mm wide, 1 NO contact for 16 A / 250 V AC, contact material AgSnO², 2 functions: Time range 0.5 to 20 min, service function. (Pressing the push-button for longer than 5 sec. closes the output contact for 60 minutes. Switches in voltage zero crossing, suitable for L and N switching, lamp loads: incandescent and halogen lamps 3000 W, energy-saving lamps 600 W, LED (230 V AC) 600 W, LV halogen lamps or LED with ECG 600 W, LV halogen lamps or LED with CCG 1500 W, fluorescent lamps with ECG 1500 W, fluorescent lamps with CCG 1000 W, supply voltage: 230 V AC. All connections are arranged at the bottom

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC
Function:	elektronisch
Supply voltage:	230 V
Installation depth:	60,8 mm
Rated switching current:	16 A
Max. Incandescent lamp load:	3000 W
Max. Fluorescent lamp load:	1500 VA
Max. Fluorescent lamp load (duo circuit):	1000 VA
Max. Fluorescent lamp load (parallel compensated):	1000 VA
Control voltage frequency 1:	50..60 Hz
Max. Switching current (cos phi:	0,6)=12 A
Control voltage 1:	230 V
Switch-off early warning:	ohne
Follow-up:	nachschaltbar + Dauerlicht
Relapse delay:	0,5..20 min
Circuit type:	3- und 4-Leiter-Schaltung
Impulse function selectable:	nein
Push button glow lamp current:	25 mA
Shipping weight:	0,08 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	16,50 × 10,50 × 7,50 cm
