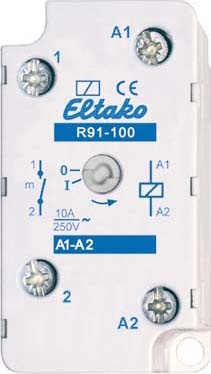

Eltako switching relay f.EB/AP 1S 10A R91-100-12V NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312203101
Heiz24 article number: SP0665086
TARIC: 85364900
Country of origin: DE
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 18,44

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

16 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 16 Pcs. we can order for you

Pcs.

Electromechanical switching relay 12V. 1 NO contact 10A/250V AC. For flush and surface mounting with manual override and switch position indicator. 50mm long, 26mm wide, 32mm deep. Duty cycle 100%. Control power requirement 2.5W. Contact spacing 2mm. Test voltage contact/contact 2000V and test voltage control terminals/contact 4000V.

Item information	Value
Mounting type:	Aufputz
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC
Function:	teilelektronisch
Installation depth:	32 mm
Rated current:	10 A
Max. Incandescent lamp load:	2300 W
Max. Fluorescent lamp load:	2300 VA
Max. Fluorescent lamp load (duo circuit):	2300 VA
Max. Fluorescent lamp load (parallel compensated):	500 VA
Control voltage frequency 1:	50 Hz
Max. Switching current (cos phi:	0,6)=8 A
Control voltage 1:	12 V
Shipping weight:	0,07 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	2,60 × 3,20 × 5,00 cm
