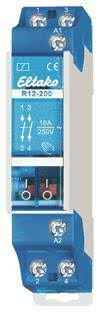

Eltako R12-200-230V switching relay 2S 16A (V) 22200030 NEW

Item condition: New and in original packaging

Manufacturers: Eltako GmbH
EAN: 4010312200520
Heiz24 article number: ZD177437
TARIC: 85364900
Country of origin: DE
Category: Stromstoßschalter/Relais

€ 21,24

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

76 in the supplier warehouse

Estimated delivery time (may vary): 4 - 6 workdays (DE - foreign countries differ)

more than 76 we can order for you

Switching relay R12
-series installation devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switching position indicator. 1 division unit = 18 mm wide, 55 mm deep. Duty cycle 100%. Control power requirement 1.9 W. Contacts 1 NO contact, 2 NO contacts, 1 NO contact and 1 NC contact, 2 NC contacts (closed-circuit current relay, 230 V only). Contact spacing 3mm. Test voltage contact/contact 2000 V and test voltage control terminals/contact 4000 V. * Control voltages special types: 42, 48, 60, 110 V/50 Hz or 110, 115, 127 and 220 V/60 Hz as well as 6, 8, 42, 48, 60, 110 and 220 V DC.
-Function other
-Mounting type DIN rail
-Width in pitch units 1
-Installation depth 55 mm
-Number of contacts as normally open 2
-Number of contacts as normally closed 0
-Number of contacts as changeover 0Number of contacts as changeover contacts 0
-Control voltage 1 230
- 230 V
-Control voltage type 1 AC
-Frequency of control voltage 1 50
- 50 Hz
-Rated current 16 A
-Voltage type of supply voltage AC
-Max. Incandescent lamp load 2300 W
-Max.

Item information	Value
Shipping weight:	0,11 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	18,00 × 10,00 × 7,00 cm
