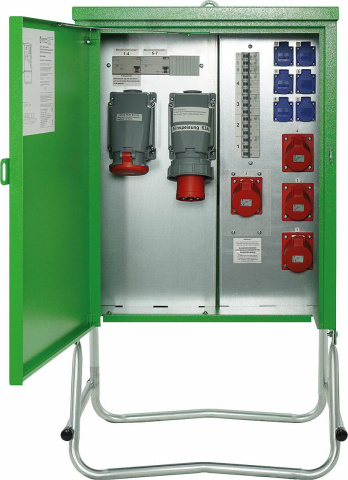

Elektra distribution cabinet EV 63N/A/622-2 NEW

Artikelzustand: Neu und originalverpackt

Manufacturers: Elektra
EAN: 4018325679708
Heiz24 article number: WS6216975
TARIC: 85366990
Country of origin: DE
Category: NEW

€ 1.619,99

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 4 weeks (DE - foreign countries differ)

- Protection class open/closed: IP21 / IP44
- Operating voltage: 230/400 V, 50 Hz
- Housing made of galvanised sheet steel, powder-coated RAL 6018, green
- With enclosed base frame (height 310 mm)
- With fitted fuse accessories
- Complies with the DIN VDE 0100-704 10/2018 standard
- Equipment:
- 1 x RCD RCD 4-pole, 63A, 30mA, type B
- 1 x CEE plug 5-pole, 63A/6h
- 1 x CEE socket outlet 5-pole, 63A/6h without fuse protection, for looping
- 2 x CEE socket outlet 5-pole, 31A via LS32A, 3-pole, Type C
- 2 x CEE socket outlet 5-pin, 16A via LS16A, 3-pin, type C
- 1 x RCD RCD 4-pin, 40A, 30mA, type A
- 6 x Schuko socket outlets 16A via 3 x LS 16A, 1-pin, type C
- Dimensions without base frame (W x H x D): 610 x 785 x 380 mm
- Weight: 45 kg
Rated voltage: 230/400 VBrand: ElektraNumber of CEE sockets 63 A / 400 V / 5-pole: 2Number of CEE sockets 32 A / 400 V / 5-pole: 2Number of residual current circuit breakers 30 mA: 2Manufacturer article number: 183272Casing material: Sheet steelProtection rating (IP): IP44PU: €/pieceOperating voltage [V]: 400Number of SCHUKO sockets: 6Rated current [A]: 63TBS label new: trueE27 label new: trueDesign: Final distribution boardHeight [mm]: 185Weight [kg]: 45Number of CEE sockets 16 A / 400 V / 5-pole: 2Ref.No.: 183272Width [mm]: 610Number of circuit breakers: 15EAN: 4018325679708Depth [mm]: 380
