"Fig. similar. , errors in texts and images excepted."

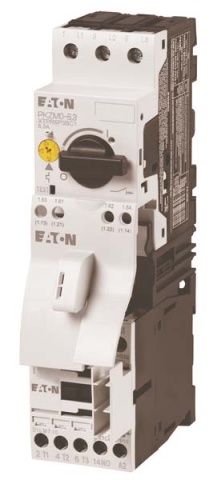

Eaton (Moeller) direct-on-line starter 50Hz MSC-D-1,6-M7 230V NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015082831400
Heiz24 article number: SP6200436
TARIC: 85365080
Country of origin: DE
Category: Antriebstechnik

€ 135,90

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

5 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 5 Pcs. we can order for you

Pcs.

Direct starter, Basic unit: MSC, Note: Also suitable for motors of efficiency class IE3, Motor data rated operational power AC-3 380 V 400 V 415 V: P= 0.37, 0.55 kW, Setting range overload release: Ir= 1 - 1.6 A, Allocation type: Allocation type ¿1¿, Allocation type ¿2¿, Actuating voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage, Standards and regulations: IEC/EN 60947-4-1, VDE 0660

Item information	Value
Protection class (IP):	IP20
Height:	180 mm
Connection type main circuit:	Schraubanschluss
With fuse:	nein
Wide:	45 mm
Depth:	95 mm
Mounting rail installation possible:	ja
Voltage type for actuation:	AC
Protection class (NEMA):	sonstige
Supports protocol for ASI:	nein
Supports protocol for AS-Interface Safety at Work:	nein
Supports protocol for CAN:	nein
Supports protocol for data highway:	nein
Supports protocol for DeviceNet:	nein
Supports protocol for DeviceNet Safety:	nein
Supports protocol for EtherNet/IP:	nein
Supports protocol for Foundation Fieldbus:	nein
Supports protocol for INTERBUS:	nein
Supports protocol for INTERBUS-Safety:	nein
Supports protocol for LON:	nein
Supports protocol for MODBUS:	nein
Supports protocol for PROFIsafe:	nein
Supports protocol for SafetyBUS p:	nein
Supports protocol for SERCOS:	nein
Supports protocol for other bus systems:	nein
Supports protocol for SUCONET:	nein
Supports protocol for TCP/IP:	nein
Rated operational current Ie:	1,5 A
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	0 V
Rated control supply voltage Us at DC:	0 V
Rated operating power at AC-3, 400 V:	0,55 kW
Suitable for EMERGENCY STOP:	nein
External reset possible:	nein
Number of auxiliary contacts as make contacts:	1
Overload release Current setting:	1..1,6 A
Release class:	CLASS 10 A
Type of motor starter:	Direktstarter (DOL)
Rated operational current at AC-3, 400 V:	1,6 A
With short-circuit release:	ja
With transformer:	nein
Temperature compensated overload protection:	ja
Ambient temperature, upper limit without restrictions:	60 °C 55 °C
Type of assignment according to IEC 60947-4-3:	Klasse 2
Electrical connection version for auxiliary and control circuit:	Schraubanschluss
Conditional rated short-circuit current, allocation type 1, 480 Y/277 V:	0 A
Conditional rated short-circuit current, allocation type 1, 600 Y/347 V:	0 A
Conditional rated short-circuit current, allocation type 2, 230 V:	50000 A 50 A
Conditional rated short-circuit current, allocation type 2, 400 V:	50000 A 50 A
Rated operating power at AC-3, 230 V, 3-phase:	0,25 kW
Rated power, 460 V, 60 Hz, 3-phase:	0 kW
Rated power, 575 V, 60 Hz, 3-phase:	0 kW
Supports protocol for PROFINET IO:	nein
Supports protocol for PROFIBUS:	nein
Supports protocol for PROFINET CBA:	nein
Shipping weight:	0,63 kg
Item weight:	0,58 kg
Dimensions ( Length × Width × Height ):	11,10 × 4,70 × 19,20 cm
