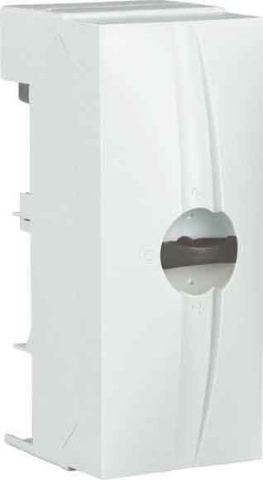

Eaton (Moeller) Terminal board 35-120qmm,81mm BBA-TP3/120 NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015081069477
Heiz24 article number: SP5600423
TARIC: 85369010
Country of origin: DE
Category: Zählerplatz- und Verteilersysteme

€ 42,60

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Connection terminal plate, 60 mm system, poles=3, screw connection system, connection cross-section=35 to 120qmm or AWG2-MCM250 or 10x16x0.8, Ie=440A, width=81mm, usable for rail 12x5/10 bix 30x5/10 and double-T-profile, silicone-free, chlorine-free, self-extinguishing according to UL 94, tracking resistance CTI 200, temperature resistant up to 120°C, terminals removable for connecting uncut conductors, terminal compartment WxH= 15x10mm, loop-through is possible

Item information	Value
Suitable for:	Flachschiene
Max. Conductor cross-section:	120 mm²
Suitable for tape conductor connection:	ja
Suitable for round conductor connection:	ja
Suitable for sector conductor connection:	ja
Max. Rated operational current Ie:	440 A
Busbar width:	12..30 mm
Busbar thickness:	5..10 mm
Clamp width:	81 mm
Shipping weight:	0,54 kg
Item weight:	0,52 kg
Dimensions ( Length × Width × Height ):	21,00 × 11,00 × 13,50 cm
