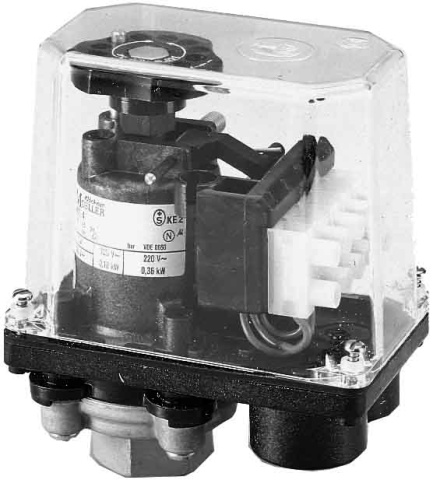

Eaton (Moeller) Pressure switch 3-pole MCSN16 NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015080386957
Heiz24 article number: SP0721454
TARIC: 85365080
Country of origin: HU
Category: Sensortechnik

€ 155,98

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

3 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 3 Pcs. we can order for you

Pcs.

Please note the permissible order quantity of 1 Pcs..

IEC EN 60947-5-1, IP65, pressure monitoring of liquid and gaseous media, e.g. compressed air, for switching loads, switch-off and switch-on pressure separately adjustable

Item information	Value
Protection class (IP):	IP65
Connection:	Innengewinde Gas zylindrisch (BSPP)
Height:	110 mm 111 mm
With display:	nein
Thread dimension:	1/2 Zoll
Wide:	60 mm
Depth:	96 mm
Diameter:	0 mm
Medium temperature:	25..80 °C
Number of NC contacts as main contacts:	3
Explosion-proof:	nein
Protection class (NEMA):	sonstige
Design of the electrical connection:	Schraubanschluss
Rated operating power at AC-3, 400 V:	5,5 kW
Max. Working pressure:	16000 hPa
Rated operational current Ie at AC-1, 400 V:	0 A
Rated operational current Ie at AC-3, 400 V:	11,5 A
Initial setting:	0 hPa
Switch-off pressure:	0..16 bar
Rated operating voltage Ue at AC 50 Hz:	0..400 V
Bursting pressure:	90 bar
Final setting:	0 hPa
Suitable as 2 point controller:	ja
Suitable as limiter:	nein
Suitable as a guard:	ja
With manual override:	nein
With manual on/off switch:	nein
Adjustable current range:	0 A
Initial value Measuring range pressure:	0 Pa
Rated operating voltage Ue at AC 60 Hz:	0..400 V
Rated operating voltage Ue at DC:	0..250 V
Pressure switching differential:	0 bar
Switch-on pressure:	0..13,1 bar
End value measuring range pressure:	0 Pa
Max. Test pressure:	32 bar
Breaking capacity at AC-3, 240 V:	0 kA
Electronic version:	nein
Shipping weight:	0,49 kg
Item weight:	0,47 kg
Dimensions ( Length × Width × Height ):	10,00 × 6,70 × 11,10 cm
Anschluss:	Innengewinde Gas zylindrisch (BSPP)
