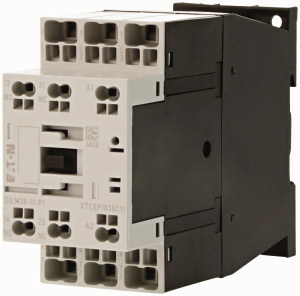

Eaton (Moeller) Power contactor DILM38-11(230#199294 NEW

Item condition: New and in original packaging

Manufacturers: Moeller_Electric#
EAN: 4015081973781
Heiz24 article number: SP2111814
TARIC: 85364900
Country of origin: RO
Category: Industrial Technology/Automation

€ 159,11

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilisation category: AC-1: Non-inductive or low-inductive load, Resistance furnaces, AC-3: Squirrel-cage motors: Starting, switching off during running, AC-4: Squirrel cage motors: Starting, counter-current braking, reversing, jogging, Connection method: push-in terminals, Not suitable for motors of efficiency class IE3., Number of poles: 3-pole, Rated operational current AC-3 380 V 400 V: Ie= 38 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, enclosed: Ith= 36 A, rated operational current AC-1 conventional thermal current 1-pole open: Ith= 100 A, enclosed: Ith= 90 A, max. rated operational power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 21 kW, max. rated operational power three-phase motors 50 - 60 Hz AC-3 Rated operational power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, can be combined with auxiliary contacts: DILM32-XHI¿-PI, DILA-XHI(V)¿-PI, Contact configuration S = NO contact: 1 S, Contact configuration Ö = NC contact: 1 Ö, Switching elements according to EN 50012., With mirror contact.., Current type AC/DC: AC actuation

Item information	Value
Connection type main circuit:	Federzuganschluss
Suitable for in-line installation:	nein
Voltage type for actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	240 V
Rated control supply voltage Us at DC:	0 V
Rated operating power at AC-3, 400 V:	18,5 kW
Number of auxiliary contacts as make contacts:	1
Number of NO contacts as main contacts:	3
Rated operational power NEMA:	0 kW
Rated operational current Ie at AC-1, 400 V:	45 A
Rated operational current Ie at AC-3, 400 V:	38 A
Rated operating power at AC-4, 400 V:	7 kW
Rated operational current Ie at AC-4, 400 V:	15 A
Number of auxiliary contacts as break contacts:	1
Shipping weight:	0,46 kg
Item weight:	0,44 kg
Dimensions ( Length × Width × Height ):	8,80 × 4,90 × 12,10 cm
