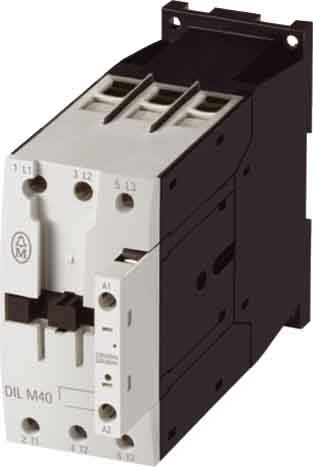

Eaton (Moeller) Power contactor 30kW/400V,DC DILM65(RDC24) NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015082779085
Heiz24 article number: SP0755018
TARIC: 85364900
Country of origin: RO
Category: Industrial Technology/Automation

€ 424,52

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

Please note the permissible order quantity of 1 Pcs..

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilisation category: AC-1: Non-inductive or low-inductive load, Resistance furnaces, AC-3: Squirrel-cage motors: Starting, switching off during running, AC-4: Squirrel-cage motors: Starting, counter-current braking, reversing, jogging, Connection method: screw terminals, Note: Also suitable for motors of efficiency class IE3, Poles: 3-pole, Rated operational current AC-3 380 V 400 V: Ie= 65 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 98 A, enclosed: Ith= 72 A, rated operational current AC-1 conventional thermal current 1-pole open: Ith= 200 A, enclosed: Ith= 180 A, max. rated operational power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 20 kW, 380 V 400 V: P= 30 kW, 660 V 690 V: P= 35 kW, max. rated operational power three-phase motors 50 - 60 Hz AC-3 Rated operational power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 7 kW, 380 V 400 V: P= 12 kW, 660 V 690 V: P= 17 kW, can be combined with auxiliary contacts: DILM150-XHI(V).., DILM1000-XHI(V).., Notes: Switching elements according to EN 50012, Integrated suppressor circuit in the control electronics, Current type AC/DC: DC actuation

Item information	Value
Connection type main circuit:	Schraubanschluss
Suitable for in-line installation:	nein
Voltage type for actuation:	DC
Rated control supply voltage Us at AC 50 Hz:	0 V
Rated control supply voltage Us at AC 60 Hz:	0 V
Rated control supply voltage Us at DC:	24..27 V
Rated operating power at AC-3, 400 V:	30 kW
Number of NO contacts as main contacts:	3
Rated operational power NEMA:	37 kW
Rated operational current Ie at AC-1, 400 V:	98 A
Rated operational current Ie at AC-3, 400 V:	65 A
Rated operating power at AC-4, 400 V:	12 kW
Rated operational current Ie at AC-4, 400 V:	25 A
Shipping weight:	1,10 kg
Item weight:	1,05 kg
Dimensions ( Length × Width × Height ):	15,10 × 5,70 × 11,80 cm
