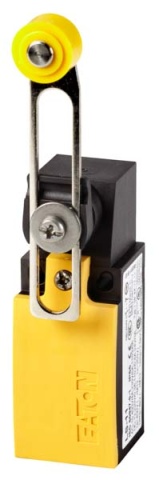

Eaton (Moeller) Position Switch Adjustable Roller Lever LS-11S/RLA NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015082661199
Heiz24 article number: SP0758431
TARIC: 85365080
Country of origin: DE
Category: Sensortechnik

€ 41,84

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

554 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 554 Pcs. we can order for you

Pcs.

Position switch, Basic function: Position switch, Safety position switch, Type designator: LS(M)-¿, Range: Adjustable roller lever, Protection class: IP66, IP67, Features: Complete device, Ambient temperature: -25 - +70 °C, Snap-action contact: yes, Contact configuration S = NO contact: 1 S, Contact configuration Ö = NC contact: 1 Ö, Note: = safety function, through positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Colour of housing cover: yellow, Housing: plastic, Connection type: cage clamp, Cage clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., Accessories for the cage-clamp connection from Wago: Insertion bridge, grey, Wago order no. 264-402, Standards and regulations: IEC/EN 60947

Item information	Value
Protection class (IP):	IP67 IP66/IP67
Enclosure material:	Kunststoff
Design of the actuating element:	Schwenkhebel verstellbar
Number of contacts as normally open:	1
Forced opening:	ja
Protection class (NEMA):	sonstige 4X
Design of the electrical connection:	sonstige Kabeleinführung (metrisch)
Suitable for safety functions:	ja
Coating housing:	sonstige
Explosion protection category for gas:	ohne
Explosion protection category for dust:	ohne
Number of contacts as break contacts:	1
Ambient temperature during operation:	25..70 °C -25..70 °C
Rated operational current Ie at AC-15, 230 V:	6 A
Switching function:	Sprungschaltglied
Switching function latching:	nein
Sensor width:	31 mm
Sensor height:	61 mm
Sensor length:	33,5 mm
Housing design:	Quader
Sensor diameter:	0 mm
With status display:	nein
Execution of the interface:	ohne
Design of the interface for safety-related communication:	ohne
Rated operational current Ie at AC-15, 125 V:	6 A
Rated operational current Ie at DC-13, 125 V:	0,8 A
Rated operational current Ie at DC-13, 230 V:	0,3 A
Output electronic:	nein
Alignment of the actuator:	sonstige Rollenstößel quer
Rated operational current Ie at AC-15, 24 V:	6 A
Rated operational current Ie at DC-13, 24 V:	3 A
Number of safety-related auxiliary contacts:	1
Shipping weight:	0,12 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	3,50 × 3,30 × 12,20 cm
