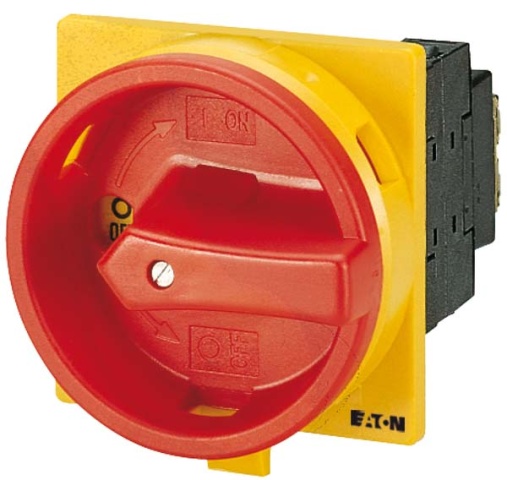

Eaton (Moeller) Main Switch Panel Mount/Red P1-32/EA/SVB NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015080814382
Heiz24 article number: SP0722281
TARIC: 85365080
Country of origin: GB
Category: Industrial Technology/Automation

€ 63,10

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

74 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 74 Pcs. we can order for you

Pcs.

Please note the permissible order quantity of 1 Pcs..

Main switch, Range: Main switch, Maintenance switch, Repair switch, Type identifier: P1, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Information on scope of delivery: Auxiliary switch contact or neutral conductor can be retrofitted, 3-pole, Lockability: lockable in 0-position, Protection class: Front IP65, Mounting form: Recessed, Rated operational power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, Standards and regulations: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, switch-disconnector to IEC/EN 60947-3, NEMA12

Item information	Value
Number of poles:	3
Design of the actuating element:	Türkupplungsdrehantrieb
Protection class (IP), front side:	IP65
Main switch version:	Ja
Design as maintenance/repair switch:	Ja
Safety switch version:	nein
Design as EMERGENCY OFF device:	Ja
Motor drive optional:	nein
Motor drive integrated:	nein
Voltage release optional:	nein
Suitable for floor mounting:	nein
Suitable for manifold installation:	nein
Suitable for intermediate construction:	nein
Connection type main circuit:	Schraubanschluss
Lockable:	Ja
Protection class (NEMA):	1 12
Rated uninterrupted current Iu:	32 A
Conditional rated short-circuit current Iq:	80 kA
Max. Rated operating voltage Ue at AC:	690 V
Rated short-time withstand current Icw:	0,64 kA
Reversing switch version:	nein
Rated operating power at AC-23, 400 V:	15 kW
Rated operating power at AC-3, 400 V:	13 kW
Rated operating voltage:	690 V
Rated uninterrupted current at AC-21, 400 V:	32 A
Actuator colour:	rot
Suitable for front mounting 4-hole:	ja
Suitable for front mounting Central:	nein
Device design:	Einbaugerät Festeinbautechnik
Switching capacity at 400 V:	15 kW
Number of switches:	1
Rated uninterrupted current at AC-23, 400 V:	32 A
Shipping weight:	0,22 kg
Item weight:	0,19 kg
Dimensions ( Length × Width × Height ):	13,70 × 8,00 × 10,20 cm
