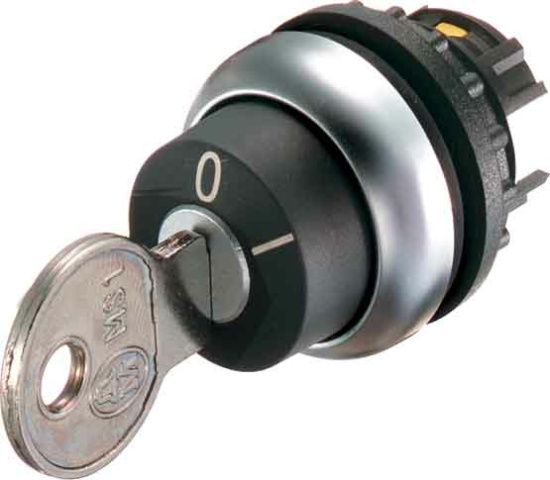

Key-operated pushbutton, RMQ-Titan, complete unit, latching, Function: 60°, Type of connection: Screw connection, I, Protection class: IP66, Front ring titanium, Connection to SmartWire-DT: no, Contact configuration Ö = NC contact: 1 Ö, S = NO contact: 1 S, Contact configuration Note: = Safety function, by positive opening according to IEC/EN 60947-5-1, Travel of the operating element and actuating force according to DIN EN 60947-5-1, K.5.4.1 Positive opening travel: mm 4.8, maximum travel: mm 5.7, minimum force for positive opening: N 20, front dimension: 29.7, Notes: Latching/push-button function can be changed with coding parts M22-XC-Y, Key removal can be changed with coding parts M22-XC-¿, Information on scope of delivery: with 1 key, Standards and regulations: IEC/EN 60947, VDE 0660
