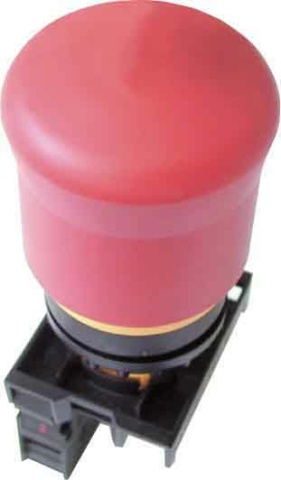

EMERGENCY STOP/ EMERGENCY OFF button, Range: RMQ-Titan, Complete device, Mounting form: Mushroom shape, Diameter: 38 mm, Illumination: Non-illuminated, Pull release, Connection type: Screw connection, Description: Tamper-proof to ISO 13850/EN 418, Colour mushroom plunger: red, Colour button base: yellow, Protection class: IP66, IP69K, Connection to SmartWire-DT: no, Contact configuration Ö = NC contact: 1 Ö, Contact configuration Note: = safety function, by positive opening according to IEC/EN 60947-5-1, Travel of the operating element and actuating force according to DIN EN 60947-5-1, K.5.4.1 Positive opening travel: mm 4.8, maximum travel: mm 5.7, minimum force for positive opening: N 15, front dimension: 35, Notes: Max. 4 x M22-(C)K01, ¿10 or 2 x M22-(C)K02, ¿20, ¿11, Standards and regulations: IEC/EN 60947, VDE 0660
