"Fig. similar. , errors in texts and images excepted."

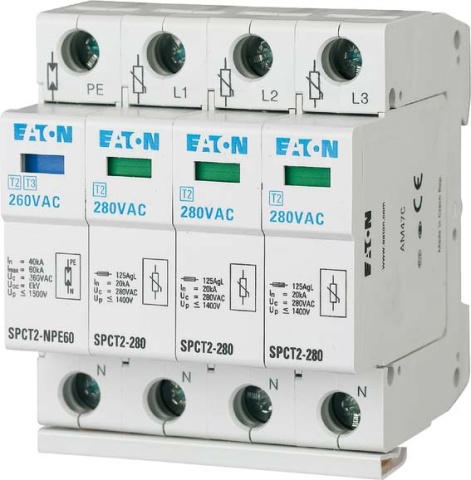

Eaton (Installation) Surge arrester pluggable SPCT2-280-3+NPE NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015081640683
Heiz24 article number: SP5904348
TARIC: 85365080
Country of origin: RO
Category: Überspannungsschutz

€ 91,04

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

73 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 73 Pcs. we can order for you

Pcs.

For the protection of consumer installations against transient overvoltages caused by indirect lightning strikes and switching operations, test class II to IEC 61643-1+A1, SPD-type T2 to EN 61643-11, auxiliary switch SPC-S-HK can be fitted for remote signalling, Can be rail-mounted with all Xtra Combinations switchgear caused by indirect lightning strikes and switching operations, test class II to IEC 61643-1+A1, SPD-type T2 to EN 61643-11, auxiliary switch SPC-S-HK can be mounted for remote signalling, Can be rail-mounted with all Xtra Combinations switchgear

Item information	Value
Protection class (IP):	IP20
Mounting type:	Hutschiene TH35
Size:	4 TE
Integrated back-up fuse:	nein
Mains form TN-C:	nein
Mains form TN-S:	Ja
Mesh shape TT:	Ja
Mains form DC:	nein
Mains form TN:	Ja
Highest continuous voltage AC:	280 V
Highest continuous voltage DC:	0 V
Max. Leakage current (8/20):	40 kA
Max. Conductor cross-section flexible (fine-stranded):	35 mm²
Max. Conductor cross-section rigid (solid/multi-stranded):	25 mm²
With remote signalling contact:	nein
Rated leakage current (8/20):	20 kA
Rated voltage AC:	280 V
Test class type 2:	ja
Protection level L-N:	0 kV
Signalling on the unit:	optisch
Number of conductors (without earth):	3
Short circuit resistance (Isccr):	0 kA
Network form IT:	ja
Mains form TN-C-S:	ja
Protection level:	1,39999999 kV
Rated voltage DC:	0 V
Net shape other:	ja
Protection level N-PE:	0 kV
Max. PV voltage:	0 V
Shipping weight:	0,42 kg
Item weight:	0,40 kg
Dimensions ( Length × Width × Height ):	8,60 × 7,30 × 7,50 cm

There are no reviews yet.
