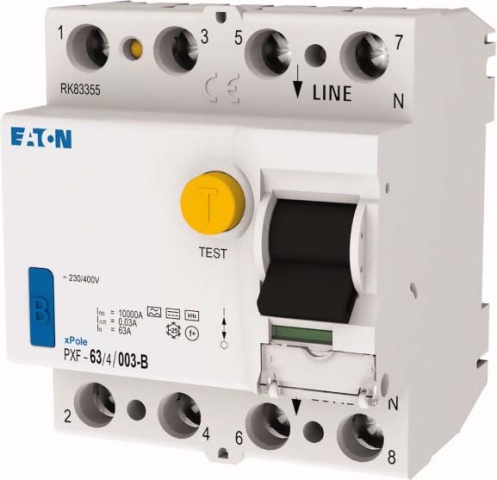

Eaton (Installation) RCD 63A,4p,30mA,Type B PXF-63/4/003-B NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 9010238110588
Heiz24 article number: SP5715153
TARIC: 85362010
Country of origin: CZ
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 314,56

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Residual current circuit-breaker PXF, 4-pole, rated current In: 63 A, rated short-circuit strength Icn: 10 kA, rated residual current I?N: 0.03 A, switchgear for residential and commercial buildings

Item information	Value
Protection class (IP):	IP20
Mounting type:	DIN-Schiene
Voltage type:	AC
Number of poles:	4
Width in units of division:	4
Frequency:	50 Hz
Explosion-proof:	nein
Connectable conductor cross-section solid:	1,5..35 mm²
Connectable conductor cross section stranded:	1,5..16 mm²
Rated voltage:	400 V
Rated insulation voltage Ui:	440 V
Installation depth:	70,5 mm
Rated current:	63 A
Pollution level:	2
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25..40 °C -25..50 °C
Additional equipment possible:	ja
Short circuit strength (Icw):	10 kA
Rated residual current:	0,03 A
Residual current type:	B
Short time delayed type:	nein
With locking device:	ja
Selective type:	nein
Surge current resistance:	0,25 kA
Shipping weight:	0,35 kg
Item weight:	0,32 kg
Dimensions ( Length × Width × Height ):	8,60 × 7,30 × 7,50 cm
