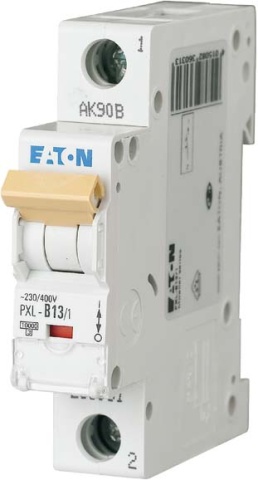

Eaton (Installation) LS-Switch w.Beschrift. B 13A, 1p PXL-B13/1 NEW

"Fig. similar. , errors in texts and images excepted."

Eaton (Installation) LS-Switch w.Beschrift. B 13A, 1p PXL-B13/1 NEW

Item condition: New and in original packaging

Manufacturers: Eaton#
EAN: 4015082360313
Heiz24 article number: SP0633604
TARIC: 85363010
Country of origin: RS
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 7,54

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

20 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 20 Pcs. we can order for you

Pcs.

Miniature circuit-breaker, PXL, 1-pole, tripping characteristic: B, rated current In: 13 A, rated breaking capacity to IEC/EN 60898-1: 10 kA, switchgear for residential and commercial buildings

Item information	Value
Protection class (IP):	IP20
Voltage type:	AC
Width in units of division:	1
Frequency:	50..60 Hz
Explosion-proof:	nein
Flush mounting:	nein
Connectable conductor cross-section solid:	1..25 mm²
Connectable conductor cross section stranded:	1..25 mm²
Rated voltage:	230 V
Rated insulation voltage Ui:	440 V
Installation depth:	70,5 mm
Rated current:	13 A
Release characteristics:	B
Pollution level:	2
Overvoltage category:	3
Number of fused poles:	1
Rated breaking capacity Icn according to EN 60898 at 230 V:	10 kA
Rated breaking capacity Icn according to EN 60898 at 400 V:	10 kA
Rated breaking capacity Icu according to IEC 60947-2 at 230 V:	0 kA
Rated breaking capacity Icu according to IEC 60947-2 at 400 V:	0 kA
Rated impulse withstand voltage Uimp:	4 kV
Energy limitation class:	3
Switching neutral conductor:	nein
Number of poles (total):	1
Ambient temperature during operation:	-25..55 °C
Additional equipment possible:	ja
Shipping weight:	0,11 kg
Item weight:	0,10 kg
Dimensions ( Length × Width × Height ):	8,20 × 1,90 × 7,70 cm
