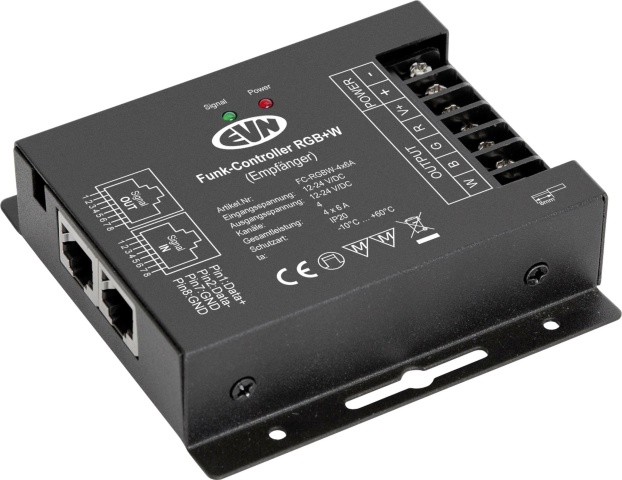

EVN Lichttechnik Radio receiver controller 12-24V/DC-4x6A IP20 FCRGBW4X6A NEW

Item condition: New and in original packaging

Manufacturers: EVN-Lichttechnik#
EAN: 4037293004534
Heiz24 article number: SP6518584
TARIC: 85269200
Country of origin: CN
Category: Installations-Bus-Systeme

€ 79,81

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Radio controller receiver for RGBW LED luminaires. Suitable for luminaires with an operating voltage of 12 and 24V/DC. The actual input voltage to be used depends on the required voltage of the luminaires to be controlled. 1x input for 12-24V/DC, 1x output (+, RGBW), and 2x RJ45 connection for master-slave applications. Thus, the controller offers two possibilities for larger installations: Either the control signal is extended on the secondary side by means of a repeater, or several controllers are connected as master-slave via the RJ45 connections. The screw terminals are suitable for cables up to max. 2.5mm². Technical data: ta: -10°C - 60°C, tc: 60°C, max. output power per channel: 6A, 72W at 12V/DC and 144W at 24V/DC. Compatible radio controllers: WP-RGBW-w, HS-RGBW.

Item information	Value
Version:	dynamisch
Protection class (IP):	IP20
Height:	25 mm
Protection class:	III
Housing:	Metallgehäuse
Suitable for outdoor use:	nein
Structure:	Ja
Installation:	Ja
Wide:	90 mm
Length:	91 mm
Diameter:	0 mm
Max. Output current:	6 A
Output voltage:	12..24 V
Input voltage:	12..24 V
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Number of colour channels:	4
Control type:	sonstige
DIN rail mounting:	nein
Programmable:	nein
Shipping weight:	0,20 kg
Item weight:	0,20 kg
Dimensions ( Length × Width × Height ):	10,00 × 10,00 × 3,00 cm
