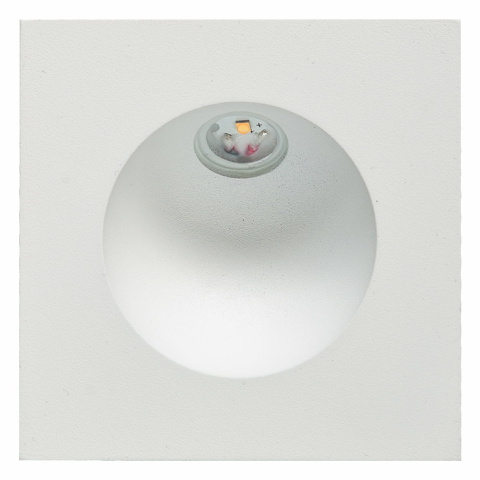

EVN Lichttechnik P-LED recessed wall luminaire IP54 700mA 2W 3000K P20402 ws NEW

"Fig. similar. , errors in texts and images excepted."

EVN Lichttechnik P-LED recessed wall luminaire IP54 700mA 2W 3000K P20402 ws NEW

Item condition: New and in original packaging

Manufacturers: EVN-Lichttechnik#
EAN: 4037293010566
Heiz24 article number: SP3216623
TARIC: 94054239
Country of origin: CN
Category: Linear and ex-lights

€ 43,87

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

4 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 4 Pcs. we can order for you

Pcs.

The LED recessed luminaire is designed so that it can be mounted either in the wall or optionally in switch boxes. The colour of the luminaire is RAL9003. Due to its design and performance, the luminaire is perfectly suitable as an orientation luminaire. As the luminaire is operated via 700mA, the luminaires are to be connected in series. The luminaire has a 0.5m long connection cable.

PDF

Gebrauchsanleitung

Gebrauchsanleitung

Produktdatenblatt

Produktdatenblatt

Item information	Value
Protection class (IP):	IP54
Illuminant:	LED nicht austauschbar
With illuminant:	Ja
Housing colour:	weiß
Enclosure material:	Aluminium
Light colour:	weiß
Control gear:	LED-Betriebsgerät stromgesteuert
With control gear:	nein
Without dimming function:	nein
Dimming DALI:	nein
Light emission:	direkt/indirekt
Protection class:	III
Connection type:	sonstige
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Suitable for recessed mounting:	Ja
Suitable for surface mounting:	nein
With motion detector:	nein
Number of poles:	2
Cover material:	Glas transparent
Suitable for pendulum suspension:	nein
Suitable for light band configuration:	nein
Suitable for VDU workstations according to EN 12464-1:	nein
Dimming DMX:	nein
Dimming Mains voltage modulation:	nein
Dimming phase section:	nein
Dimming phase angle control:	nein
With light sensor:	nein
Rated current:	700 mA
Outer diameter:	0 mm
Suitable for emergency lighting:	nein
Wide:	80 mm
Length:	80 mm
Installation width:	0 mm
Installation length:	0 mm
Installation diameter:	60 mm
Suitable for lamp wattage:	2 W
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Radiation angle:	extrem breitstrahlend >80°
Colour temperature:	3000 K
Dimming 1-10 V:	nein
Dimming DSI:	nein
Dimming manufacturer-specific:	nein
Dimming with push-button:	nein
Dimming Touch and Dim:	nein
Dimming 0-10 V:	nein
Dimming GPRS:	nein
Dimming LineSwitch:	nein
Dimming potentiometer (device-integrated):	nein
Dimming programmable:	nein
Dimming RF:	nein
Dimming Sine Wave Reduction:	nein
Dimming Zigbee:	nein
Energy efficiency class of the light source according to EU regulation 2019/2015:	nicht relevant
Light distribution:	symmetrisch
Radiation angle adjustable:	nein
Replaceable control gear:	nein
Rated luminous flux according to IEC 62722-2-1:	112 lm
Colour temperature adjustable:	nein
Height/depth:	30 mm
Constant luminous flux control:	nein
Luminaire with limited surface temperature "D-sign:	nein
Luminous efficacy:	56 lm/W
Max. System performance:	2 W
Emergency power supply integrated:	nein
Surface protection housing:	pulverbeschichtet
Covering of the luminaire with thermal insulation material possible:	nein
Operation via Bluetooth:	nein
Dimming depending on the control gear:	ja
Dimming DALI-2:	nein
Installation height/depth:	30 mm
With air slits:	nein
Shipping weight:	0,17 kg
Item weight:	0,17 kg
Dimensions ( Length × Width × Height ):	9,00 × 9,00 × 6,00 cm
Lichtfarbe:	weiß
