EVN Lichttechnik ALU-Spot with ground spike IP54 230V GU10 545239 NEW

"Fig. similar. , errors in texts and images excepted."

EVN Lichttechnik ALU-Spot with ground spike IP54 230V GU10 545239 NEW

Item condition: New and in original packaging

Manufacturers: EVN-Lichttechnik#
EAN: 4037293012249
Heiz24 article number: SP3216538
TARIC: 94054990
Country of origin: CN
Category: Linear and ex-lights

€ 37,49

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

18 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 18 Pcs. we can order for you

Pcs.

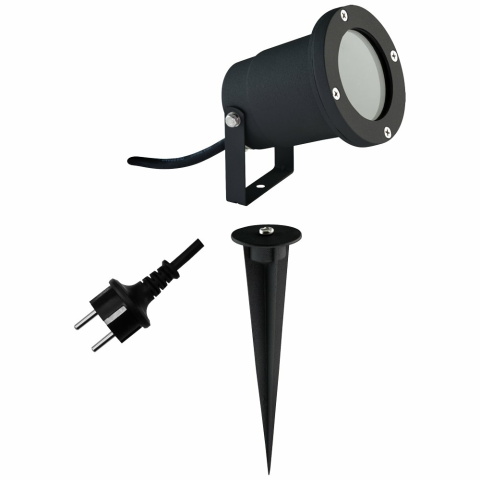

The luminaire can either be mounted directly on the ground using the mounted bracket or optionally in soft ground using the supplied ground spike. The spotlight has a 1.5 m long connecting cable with a safety plug. The cable is fed into the luminaire through a cable gland. The luminaire can be fitted with a wide variety of lamps. The luminaire with mounting bracket has a length of 155mm when not swivelled, the supplied ground spike has a length of 165mm, the swivel angle is 110°.

PDF

Gebrauchsanleitung

Gebrauchsanleitung

Produktdatenblatt

Produktdatenblatt

Item information	Value
Surface protection:	pulverbeschichtet
Protection class (IP):	IP54
Illuminant:	HV-Halogenlampe
With illuminant:	nein
Housing colour:	schwarz
Enclosure material:	Aluminium
Suitable for number of lamps:	1
Voltage type:	AC
Control gear:	nicht erforderlich
With control gear:	nein
Without dimming function:	nein
Dimming DALI:	nein
Light emission:	direkt
Protection class:	I
Connection type:	sonstige
Rated voltage:	220..240 V
Version:	GU10
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	Ja
Suitable for recessed mounting:	nein
Suitable for surface mounting:	Ja
With motion detector:	nein
Number of poles:	3
Cover material:	Glas transparent
Suitable for pendulum suspension:	nein
Suitable for VDU workstations according to EN 12464-1:	nein
Dimming DMX:	nein
Dimming Mains voltage modulation:	nein
Dimming phase section:	nein
Dimming phase angle control:	nein
With light sensor:	nein
Adjustability:	drehbar und schwenkbar
Outer diameter:	91 mm
Wide:	0 mm
Length:	102 mm
Conductor cross-section:	1 mm²
Suitable for lamp wattage:	0,1..35 W
Brushed surface:	nein
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Dimming 1-10 V:	nein
Dimming DSI:	nein
Dimming manufacturer-specific:	nein
Dimming with push-button:	nein
Dimming Touch and Dim:	nein
Dimming 0-10 V:	nein
Dimming GPRS:	nein
Dimming LineSwitch:	nein
Dimming potentiometer (device-integrated):	nein
Dimming programmable:	nein
Dimming RF:	nein
Dimming Sine Wave Reduction:	nein
Dimming Zigbee:	nein
Energy efficiency class of the light source according to EU regulation 2019/2015:	nicht relevant
Light distribution:	symmetrisch
Replaceable control gear:	nein
Height/depth:	0 mm
Constant luminous flux control:	nein
Luminaire with limited surface temperature "D-sign:	nein
Max. System performance:	35 W
Emergency power supply integrated:	nein
Reflector:	ohne
Covering of the luminaire with thermal insulation material possible:	nein
Dimming depending on the control gear:	nein
Dimming DALI-2:	nein
LED rated current at constant current:	0 mA
Suitable for clamp mounting:	nein
Suitable for platform/floor mounting:	ja
Suitable for cable system:	nein
Suitable for busbar mounting:	nein
Suitable for truss mounting:	nein
Shipping weight:	0,58 kg
Item weight:	0,58 kg
Dimensions ( Length × Width × Height ):	10,00 × 10,00 × 18,00 cm
Fassung:	GU10
