ESYLUX ESYLUX Automatic light w. 130Gr BWM AL GARDA WL OP MD WH NEW

Item condition: New and in original packaging

Manufacturers: ESYLUX#
EAN: 4015120026133
Heiz24 article number: SP3205540
TARIC: 94051140
Country of origin: CN
Category: Linear and ex-lights

€ 72,78

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

5 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 5 Pcs. we can order for you

Pcs.

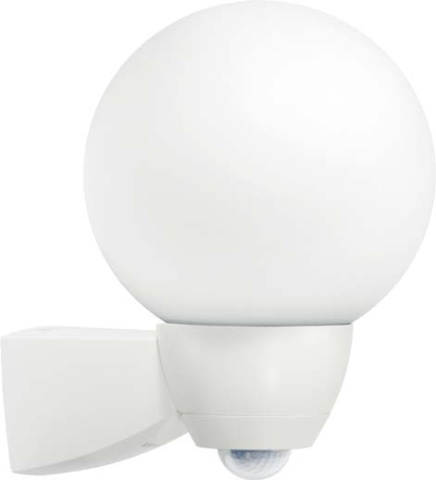

Automatic luminaire with integrated motion detector and 130° field of detection. Complete unit consisting of luminaire base and opal glass. One-hand plug-in base mounting. Concealed connection base with large wiring space. Membrane cable entry for quick and easy mounting. Supplied plug-in terminal for wiring through the protective earth conductor. Adjustment of detection and range through rotatable lens. Masking of individual areas by means of enclosed cover clips.

PDF

Montageanleitung

Montageanleitung

Produktdatenblatt

Produktdatenblatt

Item information	Value
Protection class (IP):	IP44
Illuminant:	Glühlampe
Housing colour:	weiß
Enclosure material:	Kunststoff
Light colour:	weiß
Suitable for number of lamps:	1
Voltage type:	AC
Control gear:	nicht erforderlich
With control gear:	nein
Without dimming function:	Ja
Dimming DALI:	nein
Protection class:	II
Connection type:	Schraubklemme
Rated voltage:	230 V
Version:	E27
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Suitable for surface mounting:	Ja
With motion detector:	Ja
Number of poles:	4
Cover material:	Glas opal
Suitable for pendulum suspension:	nein
Suitable for light band configuration:	nein
Dimming DMX:	nein
Design of the grid:	ohne
Dimming Mains voltage modulation:	nein
Dimming phase section:	nein
Dimming phase angle control:	nein
With light sensor:	Ja
Suitable for emergency lighting:	nein
Wide:	185 mm
Length:	275 mm
Conductor cross-section:	2,5 mm²
Suitable for lamp wattage:	100 W
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Radiation angle:	extrem breitstrahlend >80°
Dimming 1-10 V:	nein
Dimming DSI:	nein
Dimming manufacturer-specific:	nein
Dimming with push-button:	nein
Dimming Touch and Dim:	nein
Dimming 0-10 V:	nein
Dimming GPRS:	nein
Dimming LineSwitch:	nein
Dimming potentiometer (device-integrated):	nein
Dimming programmable:	nein
Dimming RF:	nein
Dimming Sine Wave Reduction:	nein
Dimming Zigbee:	nein
Energy efficiency class of the light source according to EU regulation 2019/2015:	nicht relevant
Light distribution:	symmetrisch
Wiring type:	geeignet für Durchgangsverdrahtung
Radiation angle adjustable:	nein
Replaceable control gear:	ja
Rated ambient temperature according to IEC62722-2-1:	-25..55 °C
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Height/depth:	250 mm
Constant luminous flux control:	nein
Luminaire with limited surface temperature "D-sign:	nein
Luminous flux adjustable:	nein
Light distributor:	Diffusorlinse/-optik/-panel
Emergency power supply integrated:	nein
Surface protection housing:	unbehandelt
Covering of the luminaire with thermal insulation material possible:	nein
Operation via Bluetooth:	nein
Dimming depending on the control gear:	nein
Dimming DALI-2:	nein
Shipping weight:	1,69 kg
Item weight:	1,69 kg
Dimensions ( Length × Width × Height ):	28,00 × 25,00 × 40,00 cm
Fassung:	E27
Lichtfarbe:	weiß
