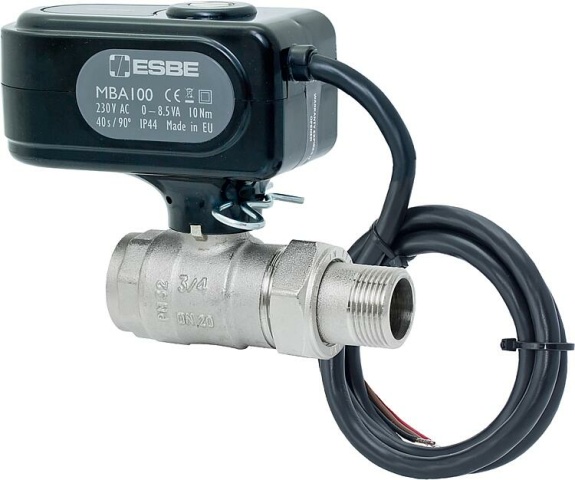

ESBE Electric Ball Valve, Type MBA 124, 2-Way DN20 (3/4) Female Thread x Male Thread, 230 V, Kvs 45 NEW

"Fig. similar. , errors in texts and images excepted."

ESBE Electric Ball Valve, Type MBA 124, 2-Way DN20 (3/4) Female Thread x Male Thread, 230 V, Kvs 45 NEW

Item condition: New and in original packaging

Manufacturers: Esbe
EAN: 7330193046640
Heiz24 article number: WS9012214
TARIC: 84818079
Country of origin: SE
Category: NEW

€ 169,40

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 we can order for you

• For installation in heating/cooling systems
• 2-point actuator
• With 0.85 meter cable
• With anti-condensation resistance, prevents condensation formation on the circuit board
• Easy installation of the actuator
• Bubble-tight according to EN12266-1
• Not suitable for domestic/drinking water

Technical data:
• Operating temperature: Max. 90°C
• Pressure rating: PN32
• Torque: 10 Nm
• Rotation angle: 90°
• 90° running time: 40 sec.
• Protection class: IP44
• Power supply: 230 V/AC, 50 Hz
• Control signal: 2-point SPTS
• Valve housing: Brass, nickel-plated
• Seals: PTFE / FPM
• Media:
- Water according to VDI2035
- Glycol mixture max. 50%
• Connections: Female thread / Male thread

PDF

90_122_11--DBL-01-de.pdf

Datenblatt

90_122_11--DBL-01-de.pdf

90_122_11--DBL-02-de.pdf

Datenblatt

90_122_11--DBL-02-de.pdf

90_122_11--DBL-01-fr.pdf

Datenblatt

90_122_11--DBL-01-fr.pdf

Item information	Value
Version:	Zweiwege
Surface protection:	vernickelt
Protection class (IP):	IP44
Size:	DN 20 (3/4")
c [mm]:	65
Connections:	sonstige
Enclosure material:	Messing
Manual operation:
Max. Medium temperature (continuous operation) [°C]:	90
Connection size:	DN 20
Control signal:	Zweipunkt
Frequency:	50 Hz
Mains voltage:	230 V AC
:	43100400
Shipping weight:	1,02 kg
Item weight:	1,02 kg
Dimensions ( Length × Width × Height ):	13,40 × 8,80 × 12,40 cm
