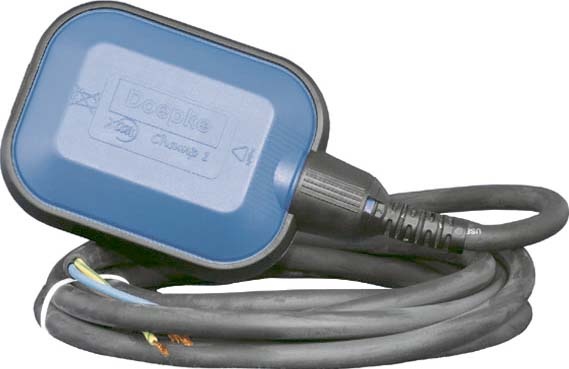

Doepke Float Switch with 10m Cable Champ 2 G-L/F 10 m NEW

"Fig. similar. , errors in texts and images excepted."

Doepke Float Switch with 10m Cable Champ 2 G-L/F 10 m NEW

Item condition: New and in original packaging

Manufacturers: Doepke##
EAN: 4014712063075
Heiz24 article number: SP6301393
TARIC: 90261029
Country of origin: IT
Category: Sensortechnik

€ 58,20

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

147 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 147 Pcs. we can order for you

Pcs.

Float switches detect liquid levels and control e.g. pumps or trigger alarms at defined levels. The switches of this series can monitor up to two different limit levels. If the adjustable level changes, the contacts open or close. Any liquid level can be adjusted by means of an optionally available weight on the float cable. The switching hysteresis is fixed. A robust, impact-resistant housing protects the switching contact. Connection cable and float form a hermetically sealed unit. The version &quot
L/F&quot
can both fill and empty. Units of the &quot
G&quot
variant have a rubber supply line. Units in the standard variant are suitable for non-aggressive liquids. Features: High switching reliability due to low-wear ball guide
Easy adjustment of the float position via optionally available counterweight
Housing material made of non-toxic PP
Highly flexible chloroprene rubber connection line
Areas of application: The main areas of application are pumps and drainage systems, waste water or chemical industry and wherever reliable level detection of liquids is required. Notes: not suitable for DC and extra-low voltage
not suitable for use in drinking water.

PDF

Produktdatenblatt

Produktdatenblatt

Gebrauchsanleitung

Gebrauchsanleitung

Item information	Value
Protection class (IP):	IP68
Connection:	sonstige
Mounting type:	oberhalb des Schachts hängend
With display:	nein
Measuring range:	0 mm
Max. Medium temperature (continuous operation):	50 °C
Immersion depth:	0 mm
Explosion-proof:	nein
Protection class (NEMA):	6P
Suitable for drinking water:	nein
Horizontal mounting:	ja
Mounting vertical:	nein
Readable:	nein
Transducer/sensor version:	sonstige
Differential range/switch hysteresis:	0 mm
Suitable for faeces:	nein
Suitable for glycol:	ja
Suitable for household waste water:	nein
Suitable for condensation water:	ja
Suitable for cooling water:	ja
Suitable for rainwater:	ja
Material float:	Kunststoff
Max. Working pressure:	0 bar
Max. Contact load:	10 A
Max. Voltage of the contacts:	250 V
Switching differential adjustable:	nein
Shipping weight:	1,21 kg
Item weight:	1,21 kg
Dimensions ( Length × Width × Height ):	21,00 × 21,00 × 7,00 cm
Anschluss:	sonstige
