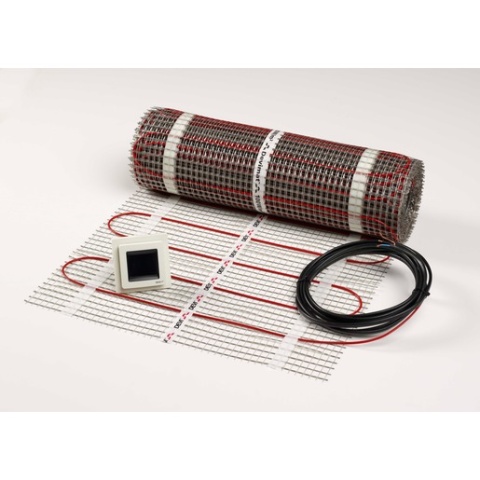

Devi thin-bed heating mat set 0.5 x 10.0 + Opti 140F1707 NEW

"Fig. similar. , errors in texts and images excepted."

Devi thin-bed heating mat set 0.5 x 10.0 + Opti 140F1707 NEW

Item condition: New and in original packaging

Manufacturers: Devi
EAN: 5703466243251
Heiz24 article number: SP4607290
TARIC: 85168080
Country of origin: PL
Category: Hot water appliances and heating technology

€ 645,17

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Thin-bed set with Opti clock thermostat, flexible sensor protection tube DN10, plastic nails, installation instructions. The self-adhesive thin-bed heating mat with a connection cable is ready to install and was specially developed for installation in levelling compound or flexible adhesive directly underneath the floor covering. Due to the low installation height of only 4 mm, it is ideal for the renovation and modernisation of bathrooms, showers, kitchens, etc. This floor temperature control system is particularly suitable for retrofitting in rooms with many nooks and crannies and/or large rooms, as there is no need to lead back the second connection. The heating cable with additional protective braiding for the use of the FI protection circuit, is mounted on a plastic net. The length of the connection cables is 2.3 m. PTC thermistor: 1 x 2.3m, 2x1.0mm², voltage: 230 V, nominal limit temperature: 90°C, specific heat output: 150 W/m², linear load: 11W, insulation: PVC lead-free / FEP, resistance tolerance: +10% / -5%, minimum installation temperature:5°C, smallest bending radius: 6 x dA, calculation width 50 cm, delivery width: 48 cm, mat height: 4 mm, protection class: IPX7, approval : IEC 60335-2-96, area 1.0 m², 0.5 x 10.0 m

PDF

Produktdatenblatt

Produktdatenblatt

Produktdatenblatt

Item information	Value
Version:	Heizkabel Heizfolie
Strength:	4 mm
Power:	150 W/m²
Wide:	500 mm
Length:	10000 mm
Connected load:	0..750 W 750 W
Self-adhesive:	ja
With room thermostat:	ja
Number of PTC thermistors:	1
Fixation of the heatsealing band:	Geklebt
Area:	5 m²
Suitable as roof surface heating:	nein
Suitable as open space heating:	nein
Suitable for damp rooms:	ja
Heat conductor load:	11 W/m
PTC resistor length:	4000 mm
With floor temperature sensor:	nein
With regulator:	ja
With support mat:	ja
Shipping weight:	3,41 kg
Item weight:	3,41 kg
Dimensions ( Length × Width × Height ):	22,00 × 22,00 × 59,00 cm
Leistung:	150 W/m²
