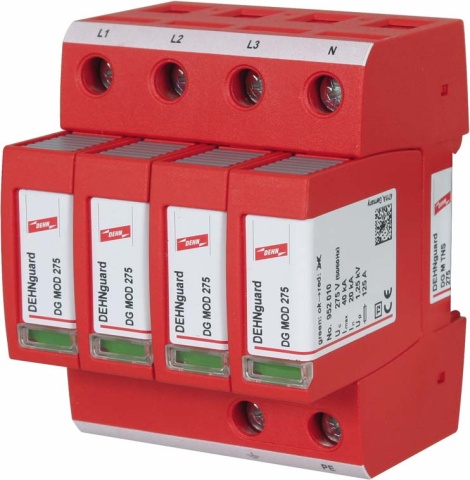

DEHN Surge arrester DEHNguard 230/400V,IP20,Type2 DG M TNS 275 NEW

"Fig. similar. , errors in texts and images excepted."

DEHN Surge arrester DEHNguard 230/400V,IP20,Type2 DG M TNS 275 NEW

Item condition: New and in original packaging

Manufacturers: Dehn
EAN: 4013364108455
Heiz24 article number: SP0628088
TARIC: 85363030
Country of origin: DE
Category: Überspannungsschutz

€ 94,43

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

190 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 190 Pcs. we can order for you

Pcs.

Multipole surge arrester DEHNguard M, type 2 according to EN 61643-11, consisting of base part and plug-in protection modules. High device safety due to arrester monitoring with thermo-dynamic control. For protecting low-voltage consumer installations against overvoltages. For use in the lightning protection zone concept at interfaces 0B ¿ 1 and higher.

PDF

Item information	Value
Protection class (IP):	IP20
Mounting type:	Hutschiene TH35
Size:	4 TE
Mains form TN-C:	nein
Mains form TN-S:	Ja
Mesh shape TT:	nein
Highest continuous voltage AC:	275 V
Max. Leakage current (8/20):	40 kA
Max. Conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (solid/multi-stranded):	35 mm²
With remote signalling contact:	nein
Rated leakage current (8/20):	20 kA
Rated voltage AC:	230 V
Test class type 2:	ja
Signalling on the unit:	optisch
Number of conductors (without earth):	4
Short circuit resistance (Isccr):	50 kA
Protection level:	1,5 kV
Max. Overcurrent protection device Stub wiring (fuse):	125 A
Protection level N-PE:	1,5 kV
Shipping weight:	0,44 kg
Item weight:	0,41 kg
Dimensions ( Length × Width × Height ):	9,90 × 7,40 × 7,30 cm
