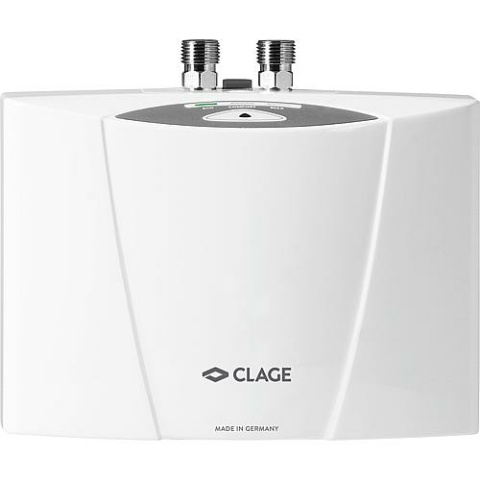

Clage MCX 3 small instantaneous water heater, electric, 3.5KW, 230V 1500-15003 NEW

"Fig. similar. , errors in texts and images excepted."

Clage MCX 3 small instantaneous water heater, electric, 3.5KW, 230V 1500-15003 NEW

Item condition: New and in original packaging

Manufacturers: Clage
EAN: 4010436150039
Heiz24 article number: WS9390757
TARIC: 85161011
Country of origin: DE
Category: Kleindurchlauferhitzer

€ 294,50

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 8 - 10 Workdays (DE - foreign countries differ)

10 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 8 - 10 workdays (DE - foreign countries differ)

more than 10 Pcs. we can order for you

Pcs.

Model MCX	3
Technical Data
Energy efficiency class	A*)
Rated power [kW]	3,5
Capacity [litres]	0,2
Permissible operating pressure [MPa (bar)]	1 (10)
Water connections (screw connections)	DN 10 3/8" ¹⁾
Hot water output at ?t = 25 K ²⁾ [l/min]	2,0
Switch-on max. flow rate ³⁾ [l/min]	1,2 - 2,0
Voltage [V AC]	1~ / N / PE 220-240
Rated current [A]	15
Min. required cable cross-section ⁴⁾ [^mm2]	1,5
^IES® bare wire heating system ⁶⁾ [O cm]	1100
approx. weight with water filling [kg]	1,5
Suitable for solar systems (supply temp. < 70°C)	•
Humidity level according to VDE	IP 25

Area of application
With standard sanitary taps for hand-rinse basins, also suitable:
- For touchless taps
- For pillar taps (no mixing of hot and cold water required)
- With low flow water pressure
- For a kitchen sink (only MCX 6/7)
- Hand-rinse basin

Model MCX	3	4	6	7
Technical data
Energy efficiency class	A*)	A*)	A*)	A*)
Rated power [kW]	3,5	4,4	5,7	6,5
Capacity [litres]	0,2	0,2	0,2	0,2
Permissible operating pressure [MPa (bar)]	1 (10)	1 (10)	1 (10)	1 (10)
Water connections (screw connections)	DN 10 3/8" ¹⁾	DN 10 3/8" ¹⁾	DN 10 3/8" ¹⁾	DN 10 3/8" ¹⁾
Hot water output at ?t = 25 K ²⁾ [l/min]	2,0	2,5	3,3	3,7
Switch-on max. flow rate ³⁾ [l/min]	1,2 - 2,0	1,5 - 2,5	1,5 - 3,3	1,5 - 3,7
Voltage [V AC]	1~ / N / PE 220-240	1~ / N / PE 220-240	1~ / N / PE 220-240	2~ / PE 400
Rated current [A]	15	19	25	2 x 16
Min. required cable cross-section ⁴⁾ [^mm2]	1,5	2,5	4,0 ⁵⁾	2,5
^IES® bare wire heating system ⁶⁾ [O cm]	1100	800	800	1100
approx. weight with water filling [kg]	1,5	1,5	1,5	1,5
Suitable for solar systems (inlet temp. < 70°C)	-	-	-	-
Humidity level according to VDE	IP 25	IP 25	IP 25	IP 25

PDF

93_907_57--DBL-01-de.pdf

Datenblatt

93_907_57--DBL-01-de.pdf

93_907_57--DBL-03-de.pdf

Datenblatt

93_907_57--DBL-03-de.pdf

93_907_57--ErP-01-de.pdf

Erp-Info

93_907_57--ErP-01-de.pdf

93_907_57--ErP-02-de.pdf

Erp-Info

93_907_57--ErP-02-de.pdf

93_907_57--DBL-01-fr.pdf

Datenblatt

93_907_57--DBL-01-fr.pdf

Item information	Value
Type:	MCX 3
Brand:	CLAGE®
EAN:	4010436150039
Manufacturer no.:	1500-15003
Voltage:	230 V
Nominal power:	3,5 kW
Shipping weight:	2,01 kg
Item weight:	2,01 kg
Dimensions ( Length × Width × Height ):	25,60 × 25,00 × 16,40 cm
LaNr.:	93 907 57
Spannung:	230 Volt
