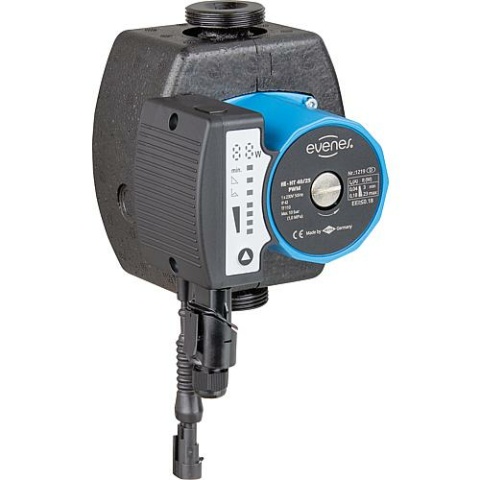

Evenes circulation pump HE-HT 40-25, DN25(1""),PN10,PWM,230V, installation length 180mm NEW

"Fig. similar. , errors in texts and images excepted."

Evenes circulation pump HE-HT 40-25, DN25(1""),PN10,PWM,230V, installation length 180mm NEW

Item condition: New and in original packaging

Manufacturers: Evenes
Heiz24 article number: WS9088561
TARIC: 84137030
Country of origin: DE
Category: Heating circulation pumps

€ 184,80

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

12 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 12 Pcs. we can order for you

Pcs.

For use in heating, solar, air conditioning and industrial systems
Flexible range of applications thanks to the following options:
- 4 proportional characteristic curves
- 4 constant characteristic curves
- Consumption display in watts
- Switchable PWM control for heating and solar applications
- Venting programme
- EC permanent magnet rotor
- Blocking current-resistant motor
- Adaptation of the pump output to the actual demand of the system
- Simple electrical connection via plug-in connection
- Incl. Thermal insulation shell
Technical data: EVENES HE-HT 40 -XX 60-XX
- Maximum delivery head: 4.0 m 6.0 m
- Maximum flow rate: 2800 l/h 3600 l/h
- Operating voltage: 1 x 230 V / 50 Hz
- Motor protection: no external motor protection required
- Protection class: IP 42
- Thermal class: TF 110
- Ambient temperature: 0° C to +40° C
- Medium temperature range: +5° C to +110° C
- Operating pressure max.10 bar
- Pump housing material: grey cast iron, KTL-coated
- Approved pumped media :
Heating water according to VDI 2035 Water/glycol mixtures 1:1
- Including thermal insulation shell

PDF

90_885_61--DBL-01-de.pdf

Datenblatt

90_885_61--DBL-01-de.pdf

90_885_61--DBL-02-de.pdf

Datenblatt

90_885_61--DBL-02-de.pdf

90_885_61--DBL-01-fr.pdf

Datenblatt

90_885_61--DBL-01-fr.pdf

Item information	Value
Type:	40-25
Brand:	evenes
Power [W]:	3...23
Nominal dimension:	DN 25 (1")
External thread:	DN 40 (1 1/2")
:	≤ 0,18
Shipping weight:	2,99 kg
Item weight:	2,99 kg
Dimensions ( Length × Width × Height ):	20,60 × 20,20 × 14,20 cm
LaNr.:	90 885 61
Spannung:	230 Volt
