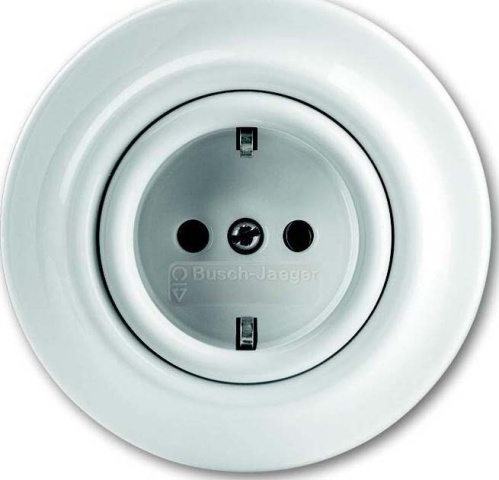

Busch-Jaeger socket outlet insert porcelain 20 EUJ-64 NEW

"Fig. similar. , errors in texts and images excepted."

Busch-Jaeger socket outlet insert porcelain 20 EUJ-64 NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger#
EAN: 4011395158616
Heiz24 article number: SP0857090
TARIC: 85366990
Country of origin: CZ
Category: Schalter, Steckdosen, Perilex, Terko

€ 58,32

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

53 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 53 Pcs. we can order for you

Pcs.

Material: porcelain With plug-in connection. 2-pole (2 P + E) Only for screw mounting. Complete device: Insert, central disc and frame Only in conjunction with commercially available flush-mounted device boxes according to DIN 49073, mount or Busch-Jaeger art. no. 3040 flush-mounted box masonry, 3050 flush-mounted box cavity wall or 3060 flush-mounted box concrete)

Item information	Value
Version:	SCHUKO
Surface protection:	unbehandelt
Colour:	weiß
Material grade:	sonstige
Surge protection:	nein
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Cover:	Komplettgehäuse
Connection type:	Steckklemme
Material:	sonstige
Surface finish:	glänzend
Mounting type:	Krallen-/Schraubbefestigung
RAL number (similar):	9016
Rated voltage:	250 V
Number of units:	1
Insulated installation:	Ja
Rated current:	16 A
Impact resistance:	IK02
Lockable:	nein
Antibacterial treatment:	nein
Frequency:	50 Hz
With hinged lid:	nein
Number of phases:	1
Text field/inscription area:	nein
Imprint/Labelling:	ohne
Rated residual current:	0 mA
Unit width:	71 mm 12 mm
Unit height:	32 mm 12 mm
Unit depth:	71 mm 32 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	40 mm
Number of active contacts (round):	2
With increased contact protection:	nein
Protective earth contact round:	nein
With signal lamp:	nein
Number of modules (for modular construction):	1
Suitable for protection class (IP):	IP20
With on/off switch:	nein
Ejection mechanism:	nein
Residual current protection:	nein
For "difficult conditions" (according to VDE):	nein
Metallic paint:	nein
With loop-through function:	ja
With built-in USB power supply:	nein
With fine-wire fuse:	nein
With functional lighting:	nein
With orientation light:	nein
Protective contact:	ja
Special power supply:	ohne Sonderstromversorgung
Twisted central insert:	nein
For difficult conditions (according to VDE):	nein
Type of USB power supply:	sonstige
Shipping weight:	0,16 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	9,40 × 8,50 × 7,50 cm
