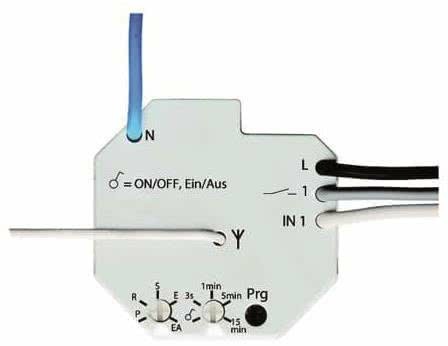

Busch & Jäger WaveLINE switching actuator, 6701-101 1-gang, m radio control NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger Elektro GmbH
EAN: 4011395182628
Heiz24 article number: ZD4074258
TARIC: 85389091
Country of origin: ES
Category: Schalter/Rahmen

€ 129,21

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

WaveLINE switch actuator, single, with extension unit
-for switching electrical loads by radio
-functions via radio: ON/OFF, timer and light scene control. Functions via extension unit: ON/OFF, timer and send radio telegram. Operation via conventional push-buttons (2020 US, 2012/6 UK) possible. Nominal voltage:230 V
-, +10 % / -10 % Nominal frequency:50 Hz Inputs:1 Interrogation voltage:Push-button pulse, L-wire Outputs:1x NO contact, potential-bound Load type:Resistive load Rated current:10 A Output voltage:230 V
Rated power:2300 W Load type:Capacitive Rated current:10 AX Temperature range device:-5 °C to 45 °C Dimensions (HxWxD):47x48x22 mm Installation depth:25 mm
-Load type universal and LED retrofit
-Mounting type flush-mounted
-Material plastic
-Material quality thermoplastic
-Surface protection other
-Surface finish matt
-Colour other
-Transparent no
-Nominal voltage 230 V
-Frequency 868
- 868 Hz
-Rated current 10 A
-Fixing type clamp fixing
-Min. Ti

Item information	Value
Shipping weight:	0,08 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	30,00 × 17,00 × 12,00 cm
