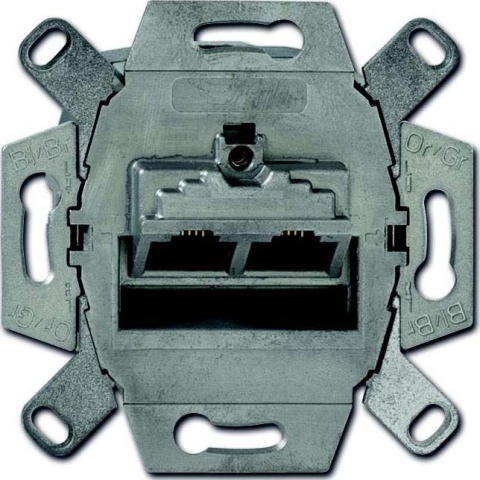

Busch-Jaeger UAE socket insert Cat. 6, 2-gang 0218/12-101 NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger#
EAN: 4011395163870
Heiz24 article number: SP0857477
TARIC: 85366990
Country of origin: DE
Category: Schalter, Steckdosen, Perilex, Terko

€ 36,69

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

156 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 156 Pcs. we can order for you

Pcs.

With angled outlet and LSA cutting terminals. RJ-45 connections for networks according to Cat. 6A, Class EA (10 Gbit/s / 500 MHz). Conforms to Cat. 6A, Class EA according to ISO/IEC 11801:2011-06. Connection marking A and B according to TIA/EIA-568-B.2. Construction according to EN 60 603-7-51:2011-01. Shielding according to DIN EN 55022, Class B. Up to 500 MHz on all wire pairs. Suitable for 10 Gigabit Ethernet. Suitable for PoE+ according to IEEE 802.3at, = 1000 mating cycles. Flexible cable feed without kinks from all sides. Enclosure grounding possible by means of 6.3 mm flat connector at the rear. Re-embedded tested. Suitable for mix-and-match use. Suitable for RJ 11, RJ 12 and RJ 45 plugs. For data cables with a diameter of 6-10 mm. For mounting in cable ducts, flush-mounted device boxes and underfloor systems. For cores AWG 24-22. Without spreader. Installation depth 31 mm. Suitable for central plate 1803-02-xxx.

Item information	Value
Colour:	grau
Protection class (IP):	IP20
Connection type:	LSA
RAL number:	9006
Mounting type:	schrauben
Compilation:	Basiselement
Category:	6A (IEC)
With text field:	nein
Surface mounting:	ja
Flush mounting:	ja
Mechanical coding:	nein
Unit width:	71 mm
Unit height:	71 mm
Unit depth:	32 mm
Connector type:	RJ45 8(8)
With dust cover:	nein
Floor tank/underfloor mounting:	ja
Duct installation:	ja
With sockets/couplings:	nein
Outlet direction:	schräg
Sockets shielded:	ja
Enclosure shielded:	ja
Suitable for number of sockets/couplings:	2
Designable:	ja
Colour coding:	ja
With terminating resistor:	nein
Mounting type shield connection:	Schraube
Separate cable strain relief:	ja
Separate earth connection:	ja
Shipping weight:	0,16 kg
Item weight:	0,12 kg
Dimensions ( Length × Width × Height ):	8,50 × 6,00 × 8,50 cm
