Busch-Jaeger Set Comfort wireless 62762 UJ-84-WL NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger#
EAN: 4011395294345
Heiz24 article number: SP0882815
TARIC: 85365080
Country of origin: DE
Category: NEW

€ 157,79

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

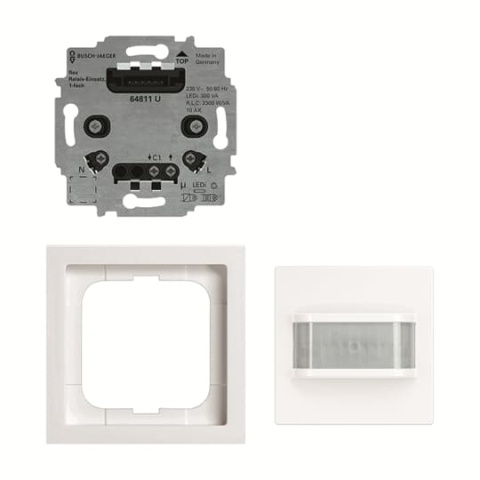

Ready-to-install motion detector for flush mounting (set packaging). Consisting of Busch-Watchdog® 180 flex comfort sensor with select lens. Consisting of relay insert flex, 1-fold, 64811 U. Consisting of future® linear cover frame, 1-fold 1721-184K. The range specifications refer to an ambient temperature of 21 °C. Only mount in conjunction with commercially available flush-mounted device boxes according to DIN 49073, Part 1 or Busch-Jaeger art. no. 3040 flush-mounted box masonry, 3050 flush-mounted box cavity wall or 3060 flush-mounted box concrete)

Item information	Value
Version:	Bewegungsmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP20
Material grade:	Thermoplast
Height:	80 mm
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	Schraubklemme
Material:	Kunststoff
Surface finish:	glänzend
RAL number (similar):	9016
Rated voltage:	230 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Constant light control:	nein
Antibacterial treatment:	nein
Wide:	80 mm
Depth:	48 mm
Temperature:	-5..45 °C
Frequency:	50 Hz
Installation depth:	25 mm
Response brightness adjustable:	ja
Max. Duty cycle:	30 min
Extension input:	ja
Teach function for response brightness:	ja
Animal track:	ja
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Max. Switching capacity LED:	300 W
Min. depth of the device box:	40 mm
Max. Switching capacity:	2300 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Dimming function with dimmer insert:	ja
Alarm function:	ja
Response brightness:	5..500 lx
Number of switching zones:	1
Angle of coverage horizontal:	13..180 °
Remote controllable:	ja
Suitable for wireless transmission:	ja
HVAC control:	nein
Max. Inrush current:	80 A
Max. Range frontal:	12 m
Max. Range to one side:	12 m
Min. duty cycle:	30 s
Min. inrush current:	0 A
With DALI interface:	nein
With remote control:	nein
With signal unit:	nein
Optimum mounting height:	1,1 m
Sensor type:	passiv Infrarot
Staircase monitoring:	nein
Bypass switch:	ja
Undercrawl protection/backfield monitoring:	nein
Networkable:	ja
Forced shutdown:	ja
Forced switching on:	ja
Shipping weight:	0,26 kg
Item weight:	0,26 kg
