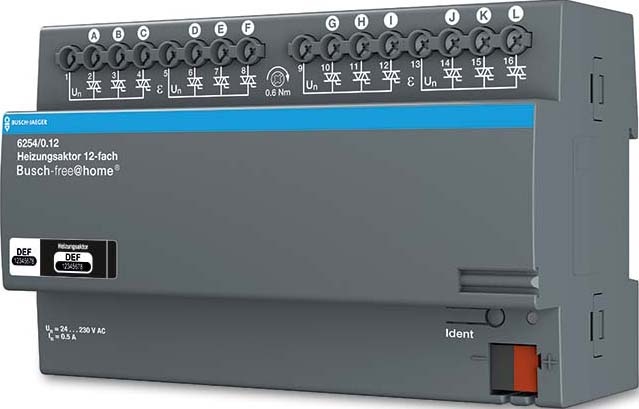

Busch-Jaeger Heating actuator 12-fold REG 6254/0.12 NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger#
EAN: 4011395180426
Heiz24 article number: SP6516153
TARIC: 85389091
Country of origin: DE
Category: Installations-Bus-Systeme

€ 286,59

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

For controlling thermoelectric actuators in heating/cooling systems. Up to 3 actuators 6164/10-102 or 1 actuator 6164/11-102 can be connected per output. The outputs are short-circuit and overload protected. The bus connection is made via the enclosed bus terminal. Programming only with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalogue.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Width in units of division:	8
Number of outputs:	12
Other bus systems:	free@home
With bus coupling:	ja
Switching voltage:	24 V
Max. Output current:	0,16 A
Max. Switching current (ohmic load):	2 A
Actuating variable switching:	nein
Actuating variable continuous:	ja
Valve protection function:	ja
Shipping weight:	0,30 kg
Item weight:	0,24 kg
Dimensions ( Length × Width × Height ):	14,90 × 9,20 × 6,50 cm
