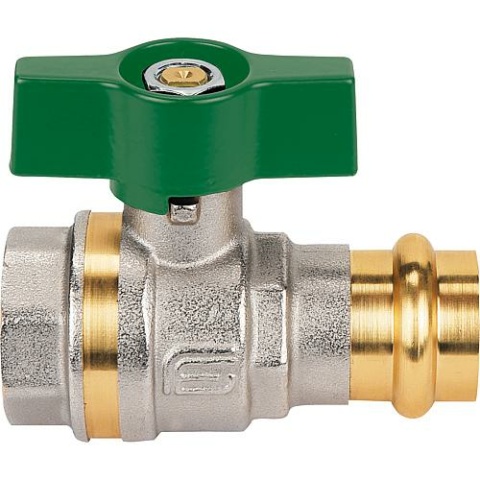

Effebi brass ball valve IG press fitting with wing handle 22 x 3/4"" NEW

"Fig. similar. , errors in texts and images excepted."

Effebi brass ball valve IG press fitting with wing handle 22 x 3/4"" NEW

Item condition: New and in original packaging

Manufacturers: Effebi
Heiz24 article number: WS9053168
TARIC: 84818081
Country of origin: IT
Category: Ball valves

€ 22,20

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

63 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 63 Pcs. we can order for you

Pcs.

- Suitable for installations in the drinking water, industrial and civil heating sectors
- Installation on copper pipes according to the UNI EN 1057 standard
- The "Presstige" system allows quick cold installation by using a V or M pressing contour
- Operating pressure: 15 mm - 28 mm max. 40 bar
35 mm max. 25 bar
42 mm - 54 mm max. 16 bar
- Temperature range: -15°C to +120°C
- Body: Brass
- Ball: Chrome-plated brass
- Seal: Teflon (PTFE)
- Passage: Full
- For DVGW approval, ball valves with an operating pressure of 10 bar are used.
This is a regulation of the DVGW, worksheet W570-1 and DIN EN 13828.
Our ball valves comply with the current ISO 7 standard. Of course, the maximum pressure specifications that we state in the technical data apply
- With aluminium wing handle

PDF

90_531_43--DBL-01-de.pdf

Datenblatt

90_531_43--DBL-01-de.pdf

90_003_82--ZFT-01-de.pdf

Zertifikat

90_003_82--ZFT-01-de.pdf

Item information	Value
Brand:	EFFEBI
Length [mm]:	77
Size:	22 mm x DN 20 (3/4")
l [mm]:	77
B [mm]:	46
A [mm]:	56
d [mm]:	22,2
Shipping weight:	0,33 kg
Item weight:	0,33 kg
Dimensions ( Length × Width × Height ):	7,70 × 6,50 × 3,90 cm
LaNr.:	90 531 68

There are no reviews yet.
