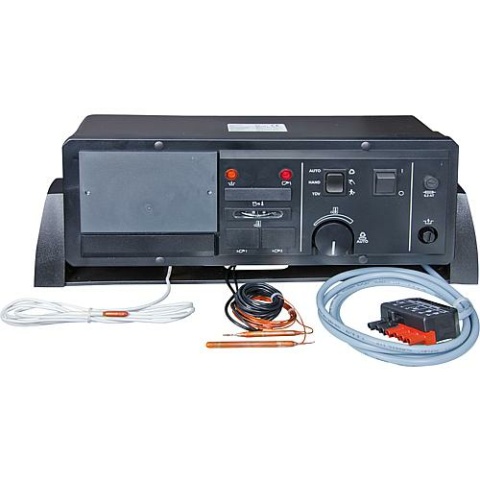

EBV Boiler control panel KSP A03 2020137000 incl. burner cable + dummy cover plate NEW

Item condition: New and in original packaging

Manufacturers: EBV#
Heiz24 article number: WS6100052
TARIC: 85371098
Country of origin: DE
Category: Regulations

€ 439,90

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

with swivelling mounting bracket with central device board, control thermostat, STB, boiler temperature display, operating selector switch with integrated TÜV button, inputs and outputs are located on terminals on the rear of the board, with emergency operation plug and dummy cover, installation of control devices possible via optionally available cable set.
For new installation or replacement of complete control units on boilers as a complete boiler control panel. With swivelling mounting bracket, a device board is completely pre-assembled for easy connection. The inputs and outputs can be connected quickly and easily at the rear using a clamp connection. Boiler operation is also possible without control using an emergency operation plug (included in the scope of delivery).

Suitable with cable sets (see below) for the following controller types:
- Delta+ 2 B, Delta+ 23 B
- Theta+ 2 B, Theta+ 23 B, Theta+ 233 B, Theta+ 2233 B VV

Equipment:
- Mains switch I / 0
- Automatic / manual / TÜV operating selector switch
- Boiler temperature controller adjustable from 8°C to 94°C
- Safety temperature limiter STB 110°C permanently set and protected by a protective cap
- Indicator lights for burner fault signal and overtemperature fault
- Boiler water temperature display

Technical data:
- Mains voltage: 230 V / 50 Hz
- Device fuse: 6.3 A slow-blow
- Housing material: ABS with antistatic agent, flame-retardant

Dimensions:
- Width with bracket: 492 mm
- Width without bracket: 422 mm
- Height with bracket: 187 mm
- Height without bracket: 154 mm
- Depth with bracket: 180 mm
- Depth without bracket: 160 mm
- Burner cable: length 2200 mm
- Sensor temp.-Display: Length 2000 mm ø 6.5 mm
- Boiler controller sensor: Length 2000 mm ø 6.5 mm
- STB sensor: Length 2000 mm ø 6.5 mm

PDF

61_000_52--DBL-01-de.pdf

Datenblatt

61_000_52--DBL-01-de.pdf

61_000_52--DBL--01-fr.pdf

Datenblatt

61_000_52--DBL--01-fr.pdf

61_000_52--DBL-01-fr.pdf

Datenblatt

61_000_52--DBL-01-fr.pdf

Item information	Value
Brand:	EBV
Manufacturer no.:	9340137000
Shipping weight:	3,37 kg
Item weight:	3,37 kg
Dimensions ( Length × Width × Height ):	50,40 × 26,80 × 24,20 cm
LaNr.:	61 000 52
