"Fig. similar. , errors in texts and images excepted."

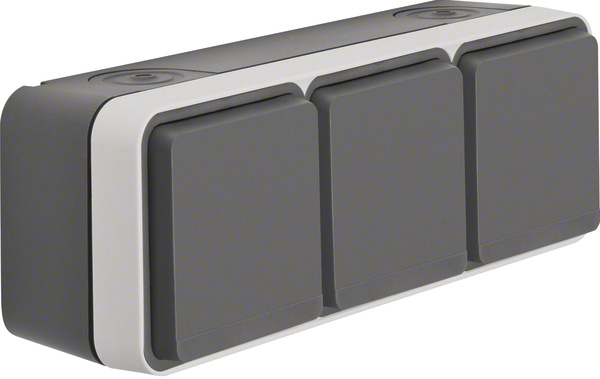

Berker SCHUKO socket outlet 3gang hinged cover. light grey 47733515 NEW

Item condition: New and in original packaging

Manufacturers: Berker#
EAN: 4011334404293
Heiz24 article number: SP0862880
TARIC: 85366990
Country of origin: DE
Category: NEW

€ 49,30

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

23 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 23 Pcs. we can order for you

Pcs.

Socket outlet earth contact 3-fold horizontal with hinged cover surface-mounted, W.1, grey. Socket outlet earth contact® 3-fold horizontal with hinged cover surface-mounted, IP55. For horizontal mounting, inserts wired through, with push-in terminals, with one entry for 2 leads and one entry for lead or conduit, full-surface seal under the enclosure base to seal the rear of the enclosure, with closing hinged cover, can be manually latched to achieve degree of protection IP55, easily accessible, funnel-shaped mounting holes in the enclosures, one Wago 2-wire connection terminal enclosed for wiring, two latching positions for Wago 2-wire connection terminals in the enclosure base, plenty of space for wiring under the bases of the inserts (hollow base), easy mounting of the insert in the enclosure by latching, secure fixing of the frame to the enclosure via bayonet quick-release fastener, connection terminals to VDE 0620, type DIN 49440. Enclosure screws and hinged cover springs of stainless steel . Surface-mounted installation. Material: plastic, thermoplastic, impact-resistant.

Item information	Value
Version:	SCHUKO
Surface protection:	unbehandelt
Colour:	grau/lichtgrau matt
Material grade:	Thermoplast
Surge protection:	nein
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Cover:	Komplettgehäuse
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	matt
Mounting type:	Befestigung mit Schraube
RAL number (similar):	7011
Rated voltage:	250 V
Number of units:	3
Insulated installation:	Ja
Rated current:	16 A
Impact resistance:	IK05
Lockable:	nein
Antibacterial treatment:	nein
Frequency:	50..60 Hz
With hinged lid:	ja
Number of phases:	1
Text field/inscription area:	nein
Imprint/Labelling:	ohne
Rated residual current:	0 mA
Unit width:	218 mm
Unit height:	76 mm
Unit depth:	63 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	0 mm
Number of active contacts (round):	2
With increased contact protection:	nein
Protective earth contact round:	nein
With signal lamp:	nein
Suitable for protection class (IP):	IP55
With on/off switch:	nein
Ejection mechanism:	nein
Residual current protection:	nein
For "difficult conditions" (according to VDE):	nein
Metallic paint:	nein
With loop-through function:	nein
With built-in USB power supply:	nein
With fine-wire fuse:	nein
With functional lighting:	nein
With orientation light:	nein
Protective contact:	ja
Special power supply:	ohne Sonderstromversorgung
Twisted central insert:	nein
Type of USB power supply:	sonstige
Shipping weight:	0,39 kg
Item weight:	0,39 kg
