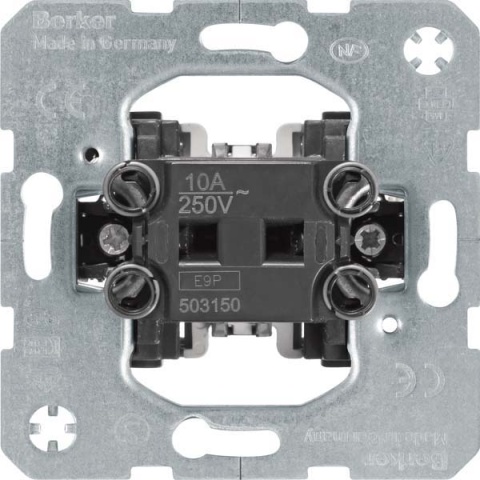

Berker Rocker push-button for cavity wall mounting 503150 NEW

Item condition: New and in original packaging

Manufacturers: Berker#
EAN: 4011334238836
Heiz24 article number: SP0817413
TARIC: 85365080
Country of origin: DE
Category: Schalter, Steckdosen, Perilex, Terko

€ 9,86

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

7 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 7 Pcs. we can order for you

Pcs.

Push-button, NO contact for cavity wall mounting, module inserts. Rocker push-button, make contact, illuminable with glow and glow unit with N-terminal for lighting and control circuit, with plug-in terminals. Mounting only possible via support ring, especially for installation in cavity walls. Can be illuminated with glow unit in accordance with the workplace regulations.

Item information	Value
Version:	Einzeltaster
Surface protection:	sonstige
With illuminant:	nein
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Connection type:	Steckklemme
Material:	sonstige
Mounting type:	Schraubbefestigung
Rated voltage:	250 V
Compilation:	Basiselement
Number of contacts as normally open:	1
Impact resistance:	IK07
With lighting:	nein
Antibacterial treatment:	nein
Imprint:	ohne
Rated current:	10 A
Text field/inscription area:	nein
Operating mode:	Wippe
Unit width:	71 mm
Unit height:	71 mm
Unit depth:	41,6 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	35 mm
With signal lamp:	nein
Suitable for protection class (IP):	IP20
Number of operating rockers:	1
Feedback contact:	nein
Version contactless:	nein
Number of reversing buttons:	1
Shipping weight:	0,58 kg
Item weight:	0,06 kg
Dimensions ( Length × Width × Height ):	7,50 × 16,00 × 22,50 cm
