Benning Socket Tester with Finger Contact BENNING SDT 1 NEW

"Fig. similar. , errors in texts and images excepted."

Benning Socket Tester with Finger Contact BENNING SDT 1 NEW

Item condition: New and in original packaging

Manufacturers: Benning
EAN: 4014651200531
Heiz24 article number: SP6907190
TARIC: 90303370
Country of origin: CN
Category: Mess- und Prüfgeräte

€ 58,41

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

9 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 9 Pcs. we can order for you

Pcs.

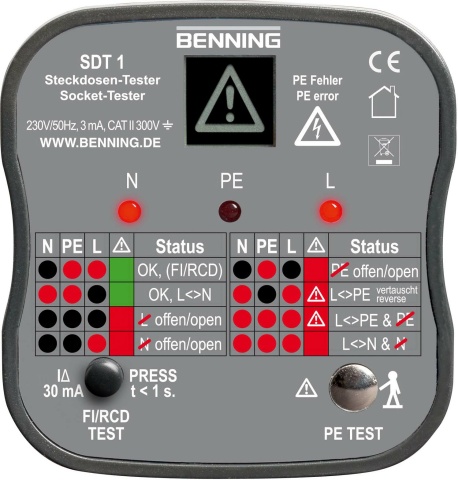

Simple and quick testing of protective contact sockets, cable drums and extension leads for correct connection, existing wiring faults and impermissibly high touch voltages at the protective conductor connection (PE) are displayed directly, in addition, the tripping function of a 30 mA residual current circuit breaker (RCD) can be checked by pressing the RCD button, display of the correct wiring status via light-emitting diodes (LED¿s), wiring faults such as missing PE, Wiring errors, such as missing PE, N and L conductor as well as the interchange of L and PE conductor, are clearly indicated via three LEDs, active PE test with touch electrode and LC display warns of the presence of a dangerous touch voltage (> 50 V) at the protective conductor connection (PE), Test button for testing the tripping function of 30 mA RCD circuit breakers, simple and safe operation by instructed persons (EUP¿s), clear status table informs about the correct connection (OK, green) and the type of fault (red) of the protective contact socket

PDF

Produktdatenblatt

Produktdatenblatt

Produktdatenblatt

Item information	Value
Power supply:	vom Prüfobjekt (ohne Batterie)
Blade length:	17 mm
Length:	17 mm
Measuring circuit category:	CAT II
Blade width:	4 mm
Voltage measuring range:	230 V
Resistance measuring range:	0 kOhm
Continuity check:	nein
Instantaneous value memory (data hold):	nein
LC display backlight:	nein
Contactless voltage detection:	nein
Rotary field direction indicator:	nein
Single-pole phase indicator:	nein
Internal base load:	nein
Load switchable:	nein ja
Measuring tip protection:	nein
Measuring point lighting:	nein
Test type:	2-polig
Voltage display:	sonstige
Usable during precipitation:	nein
Resistance measurement:	0 Ohm
Shipping weight:	0,12 kg
Item weight:	0,12 kg
Dimensions ( Length × Width × Height ):	8,10 × 7,40 × 8,00 cm
