BTR MARK- MARK-E08 230VAC/24VUC 15S-10H E08 230VAC/24VUC 15S-10H 110657 NEW

Item condition: New and in original packaging

Manufacturers: BTR
EAN: 4250184122876
Heiz24 article number: ZD2822400
TARIC: 85364900
Country of origin: DE
Category: Industrierelais

€ 23,78

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

2 in the supplier warehouse

Estimated delivery time (may vary): 4 - 6 workdays (DE - foreign countries differ)

more than 2 we can order for you

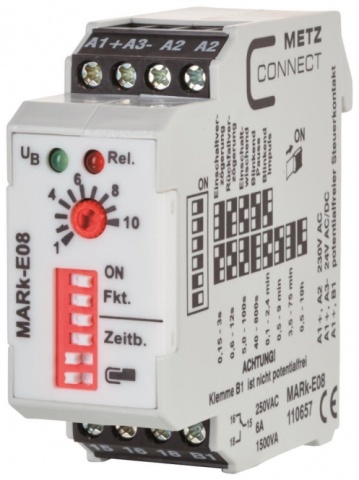

Electronic time relay multifunction MARk-E08
-Multifunction time relay with 5 functions and 8 time ranges from 0.15 s to 10 h, functions and time ranges can be programmed on the coding switches built into the front. The time is set via a linear potentiometer on a relative scale.
-features
-switch-on delayed switch-off delayed switch-on wiping flashing pause starting flashing pulse starting eight adjustable time ranges up to 10 h
-rated voltage230 V AC/24 V AC/DC Reset time> 50 ms Output contact1 changeover contact Switching voltage250 V Continuous current max.6 A Mechanical life1x10 7 switching cycles Electrical life1x10 5 switching cycles Dimensions WxHxD22.5x60x60 mm Operating temperature range-10 °C...+55 °C Storage temperature range-25 °C...+70 °C
-Design of the electrical connection Screw connection
-Complete device with base yes
-Suitable for top-hat rail mounting yes
-Suitable for front mounting no
-Function

Item information	Value
Shipping weight:	0,07 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	7,00 × 3,00 × 8,00 cm
